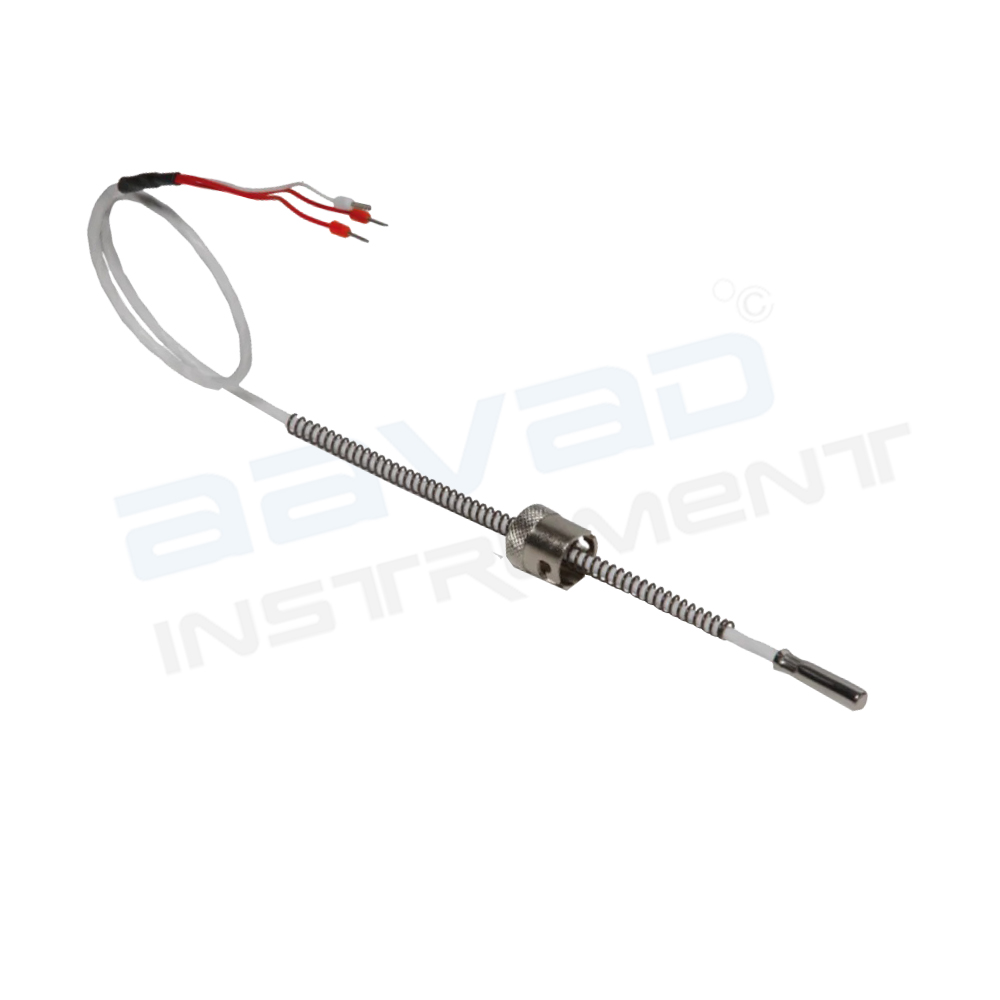

Plastic Bayonet Pt100 Sensors – Fixed Length

Flameproof Rtd Sensors - Standard AssemblyBearing Temperature Rtd Sensors

Category: Wire Type RTD & Thermocouple Sensor Manufacturer

Assembly: Bayonet

Type: PT100
Make: Aavad
Accuracy: Class A
Configuration: Simplex
No. Of Wire: 3 Wire
Temperature Range: -50 to 250 Degree C
Material Of Construction: SS 316
Wire Insulation: Teflon/Teflon
Wire Length: 2 Meter
Adapter: 1/4” BSP
Tip dia.: 5 mm
Tip length: 75 mm
Bayonet Cap: Od 14.10 mm, ID 12.00 mm, 1 Pin Locking

Description
Attachment

Description

Adjustable bayonet resistance thermometer for plastic extruders and extrusion machinery.

Spring-loaded bayonet resistance thermometers have an adjustable threaded spring that is 200mm long with either a single slot 11.5mm I.D. fixing cap or a 12.5mm I.D. double slot fixing cap to ensure a positive contact within the machined recess.

The 3-wire Pt100 RTD is available in Class A or B and housed in a 4.7mm (3/16”) or 6mm diameter stainless steel tip with 2-meter glass fiber, and stainless steel over the braid lead wire.
