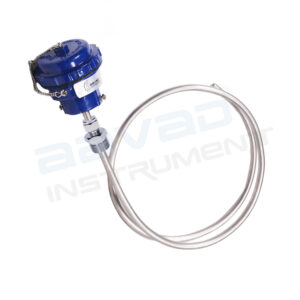

Thermocouple Mi Sensor

Thermocouple Mi Sensor

SKU: AKWD-I-1-1 Category:

Thermocouple

Type: K (Cr/Al)
Make: Aavad
Model: AKWD
Configuration: Duplex
Temperature range: 0 To 650℃
Material of construction: SS 316
Insulation: Compacted MgO insulation
Process connection: BSP
Process connection size: 1/2 ” (M) adjustable
Protection head: Die-Cast aluminum head with threaded cap & chain

Head protection class: IP-65

Head cable entry connection: ¾ “Et
No. of cable entry: Single
Terminal block: Nickel Plated ceramic terminal block
Od: 8 mm

Length: 2650 mm





Description

  • A MgO thermocouple consists of a thermocouple element encased in a metal sheath and hard-packed with magnesium oxide mineral insulation. Thermocouple sheaths are fully annealed and can be formed into different configurations (minimum bend radius is twice the outer diameter of the sheath).





AKWD_8X2650
