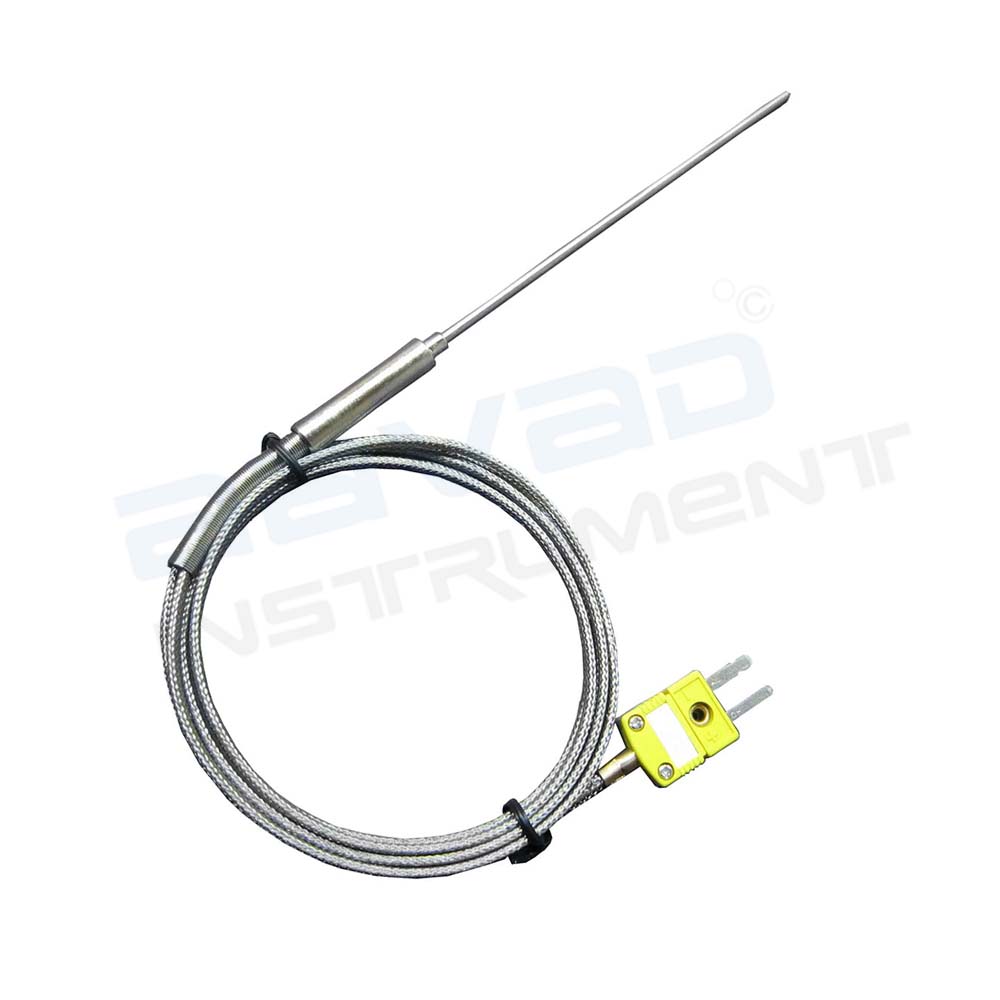

Type: K (Cr/Al)
Make: Aavad
Model: AKES – 3×250
Configuration: Simplex
Temperature range: 0 To 600℃
Material of construction: SS 316
Insulation: Compacted MgO insulation
Cable length: 1 Meter
Cable type: FG/FG/SS

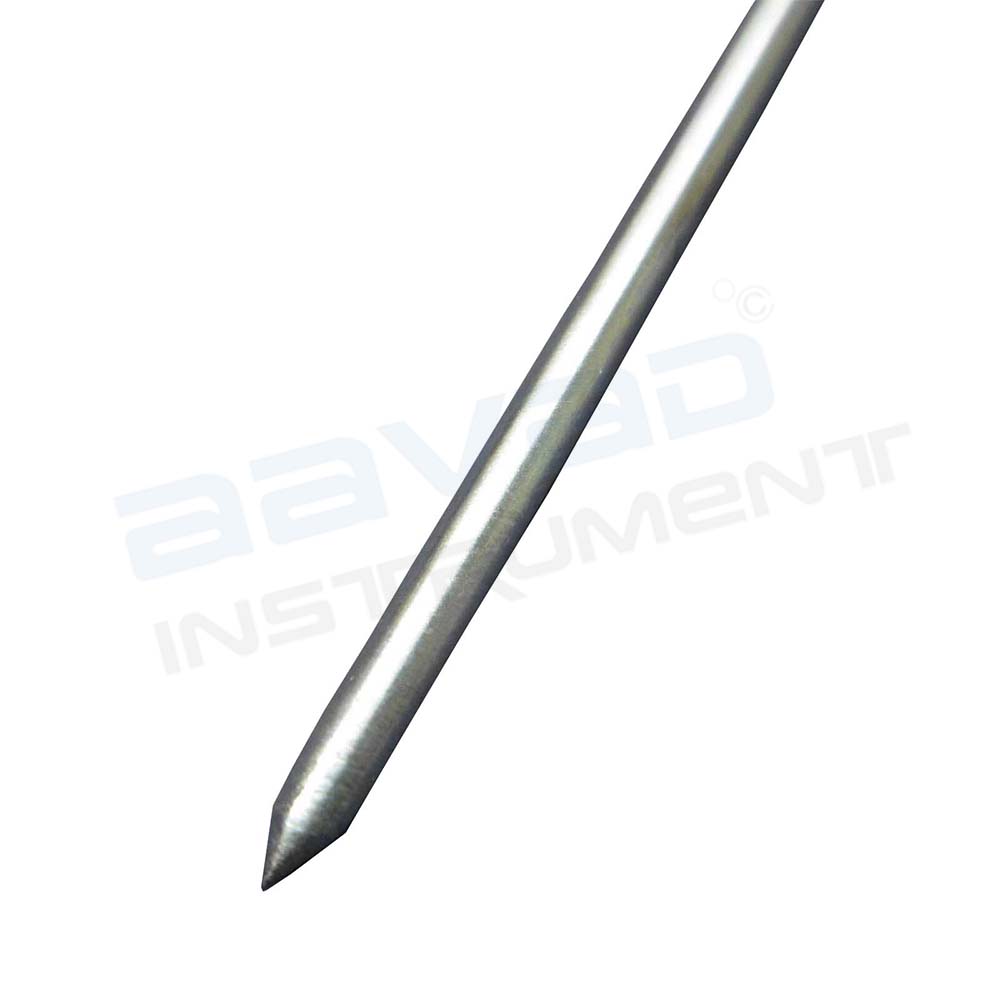

Sensor tip: Sharp edge
Sensor od: 3 mm
Sensor length: 250 mm
Connector: Omega type small Male – Female Connector
A thermocouple is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature.
