Description

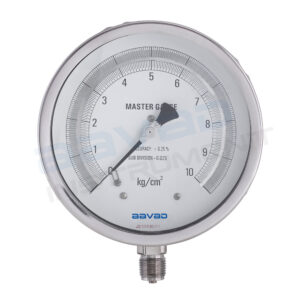

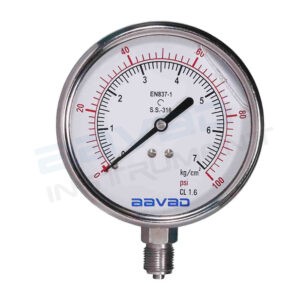

The Bourdon gauge consists of a tube bent into a coil or an arc. As the pressure in the tube increases, the coil unwinds. A pointer connected to the end of the tube can be attached to a lever and a pointer calibrated to indicate pressure. A typical 50 mm diameter tube has a displacement of up to 4 mm.
