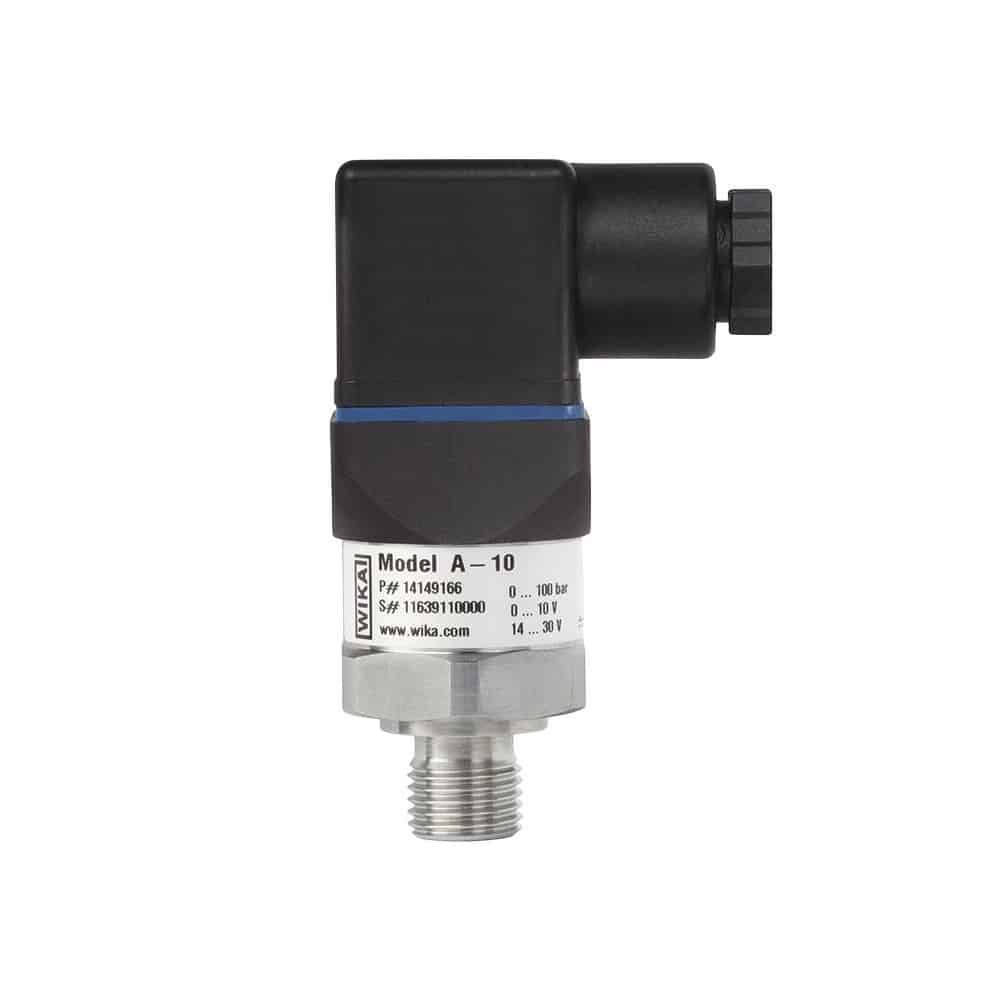

Wika Pressure Transmitters A-10

Wika Pressure TransducerWika OEM Pressure Transmitter

Category: Pressure Transmitter

Pressure Transmitter

Model: A-10

Make: Wika

Output: 4-20mA

Wiring: 2-Wire

Power Supply: 8-30 VDC

Accuracy: 0.5% of BSFL

Zero Adjustment: None

Span Adjustment: None

Electrical Connector: Valve connector size A

Process Connection: 1/4″ BSP (M)

Body & Wetted parts: SS 316

Case Protection: IP65

Medium Temperature: 0…+80°C

Description
Attachment

Description

The field-proven model A-10 pressure transmitter (pressure sensor) is the all-rounder for pressure measurement in industrial environments. Compactly built, it can be integrated in to a wide range of machine designs. The many measuring ranges, and special measuring ranges, contribute to its universal applicability.
