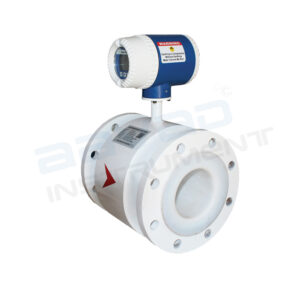

Electromagnetic Flow Meter

Make: Aavad

Model: AMAG – R

Service: Pls specify

Conductivity: ≥ 10 Μs/Cm

Output: 4 ‐ 20 Ma Isolated, Rs – 485, Pulse

Display: Lcd 16×4 line with 5 meter cable 9 digit totalized flow

Accuracy: + / ‐ 0.5 % of reading

Repeatability: + / ‐ 1%

Process temperature: 0°C ‐ 150℃

Process pressure: Max: 10 Kg/cm2

Flow tube body: SS 304

Internal: PTFE Lining

Electrode moc: SS 316L

Power supply: 230Vac

Response time: 0.3 Sec

Process connection: Asa 150 flanged MS

Operating temperature: 55℃

Electronics housing: Die cast aluminum, IP 65

Empty pipe detection: Yes

Back light lcd: Yes

Velocity: 0.2 to 10 m/s

Measuring unit: Selectable Kg/H,M3/H,L/H,L/M,L/S,Kg/M,Kg/S
