Description
The Piezometer With Telemetry is an advanced groundwater level monitoring system designed to continuously measure water levels in borewells, tube wells, open wells, observation wells, and piezometer installations. Using a highly sensitive submersible pressure sensor, the system measures the hydrostatic pressure generated by the water column above the sensing element and accurately converts it into groundwater level data. Unlike manual water level measurements that require regular site visits, the integrated telemetry system automatically transmits real-time readings to a web dashboard and mobile devices, enabling remote monitoring, historical data analysis, and faster operational decision-making.
The Aavad Piezometer With Telemetry delivers ±1 mm measurement accuracy and is available in sensor ranges of 300, 600, 900, and 1200 feet to suit different groundwater monitoring requirements. The sensing element is housed in 17-4PH stainless steel or SS316L stainless steel, providing excellent corrosion resistance for long-term operation in mineral-rich groundwater environments. Its IP68-rated construction ensures reliable permanent submersible installation in harsh field conditions. The integrated 16×2 LCD display provides local readings, while the RS-485 IoT telemetry gateway enables automatic data transmission through SMS notifications and a secure web dashboard. Aavad also includes a one-year hardware and web platform subscription, allowing users to monitor groundwater levels remotely without frequent site inspections.
Key Features
-
CGWB Regulatory Compliance Engineered to fulfill official Central Ground Water Board mandates for continuous automated groundwater monitoring.
-
±1mm Ultra-High Accuracy Precision hydrostatic pressure sensing delivers pin-point depth measurement across depth ranges from 300 to 1,200 feet.
-
Corrosion-Resistant SS316L / 17-4PH Wetted Probe Robust stainless steel body ensures long-term chemical durability in aggressive groundwater conditions.
-
IP68 Submersible Protection Fully hermetically sealed probe designed for permanent deep-well immersion.
-
Integrated RS-485 IoT Gateway & Telemetry Automatically uploads real-time groundwater levels to a cloud web portal and sends SMS alerts directly to mobile phones.
-
1-Year Subscription Included Bundled hardware, web server access, and data portal platform included for immediate field deployment.
-

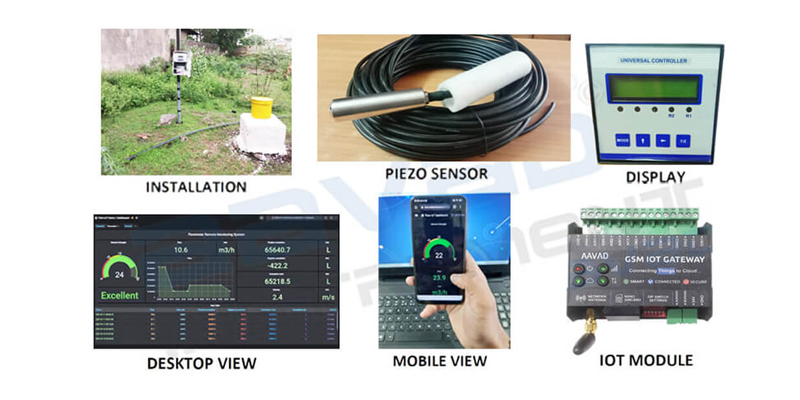

Dual Monitoring Interface Local high-visibility 16×2 character LCD display combined with real-time remote cloud accessibility.
-
MIL-STD-810C Vibration Resistance Tested to withstand ±20g mechanical shock and vibration from nearby pumping equipment.
Applications
-
CGWB Groundwater Extraction Compliance Mandatory real-time groundwater monitoring for industrial plants, textile mills, chemical units, and commercial complexes across India.
-
Borewell & Tube Well Water Table Tracking Automated static and dynamic water level monitoring for municipal water boards and public utilities.
-
Agricultural & Irrigation Management Remote water resource management for large-scale farms, estates, and agricultural cooperatives.
-
Hydrogeological & Environmental Research Long-term data logging for aquifer studies, environmental impact assessments, and watershed management projects.
-
Mining & Dewatering Control Continuous water table depression monitoring in open-cast mines, quarries, and major construction sites.
Datasheet
FAQs
1. What is a Piezometer With Telemetry?
A Piezometer With Telemetry is an IoT-enabled groundwater monitoring system that measures groundwater levels using a submersible pressure sensor and automatically transmits the data to a web dashboard, mobile application, or remote monitoring platform through a telemetry communication gateway. It enables continuous, real-time groundwater level monitoring without manual data collection.
2. How does a Piezometer measure Groundwater Level?
The submersible pressure sensor is installed below the water surface inside a borewell, tube well, or monitoring well. It measures the hydrostatic pressure exerted by the water column above the sensor and converts it into an accurate groundwater level measurement, which is displayed locally and transmitted remotely through the telemetry system.
3. What accuracy does this Piezometer provide?
The system delivers a high measurement accuracy of ±1 mm, making it suitable for continuous groundwater monitoring, environmental studies, hydrological projects, water resource management, and long-term observation applications requiring precise water level data.
4. What Sensor Ranges are available?
The Piezometer With Telemetry is available in measurement ranges of 300 ft, 600 ft, 900 ft, and 1200 ft, allowing it to accommodate shallow and deep borewells, groundwater monitoring wells, observation wells, and water resource management projects.
5. What is the benefit of Telemetry in a Piezometer?
Telemetry automatically transmits real-time groundwater level data to a cloud dashboard, SCADA system, web portal, or mobile device, eliminating the need for frequent site visits. It enables remote monitoring, instant alerts, historical data logging, trend analysis, and efficient groundwater resource management for industrial, environmental, and government applications.
Piezometer Water Level Sensor With Telemetry
DownloadWe Produce Piezo Meter Which Is Used To Measure Water Level. It Is Highly Accurate Having Accuracy Of ± 1 MM
