4-Wire Duplex RTD
4-Wire Duplex RTD
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APED-6×18 |
| Configuration | Duplex |
| Total no. of wires | 4+4 Wire |
| Accuracy | Class A / Class B (Optional) |
| Temperature range | -50 To 250 Degrees C |
| Sheath Material | SS304 / SS316 |
| Insulation | Compacted MgO Insulation |
| Cable length | 2 Meter |
| Cable insulation | Teflon/SS/Teflon |
| Tip Diameter | 6 mm |
| Tip Length | 18 mm |
| Standard | IEC 60751 / IS 2848 |
Description

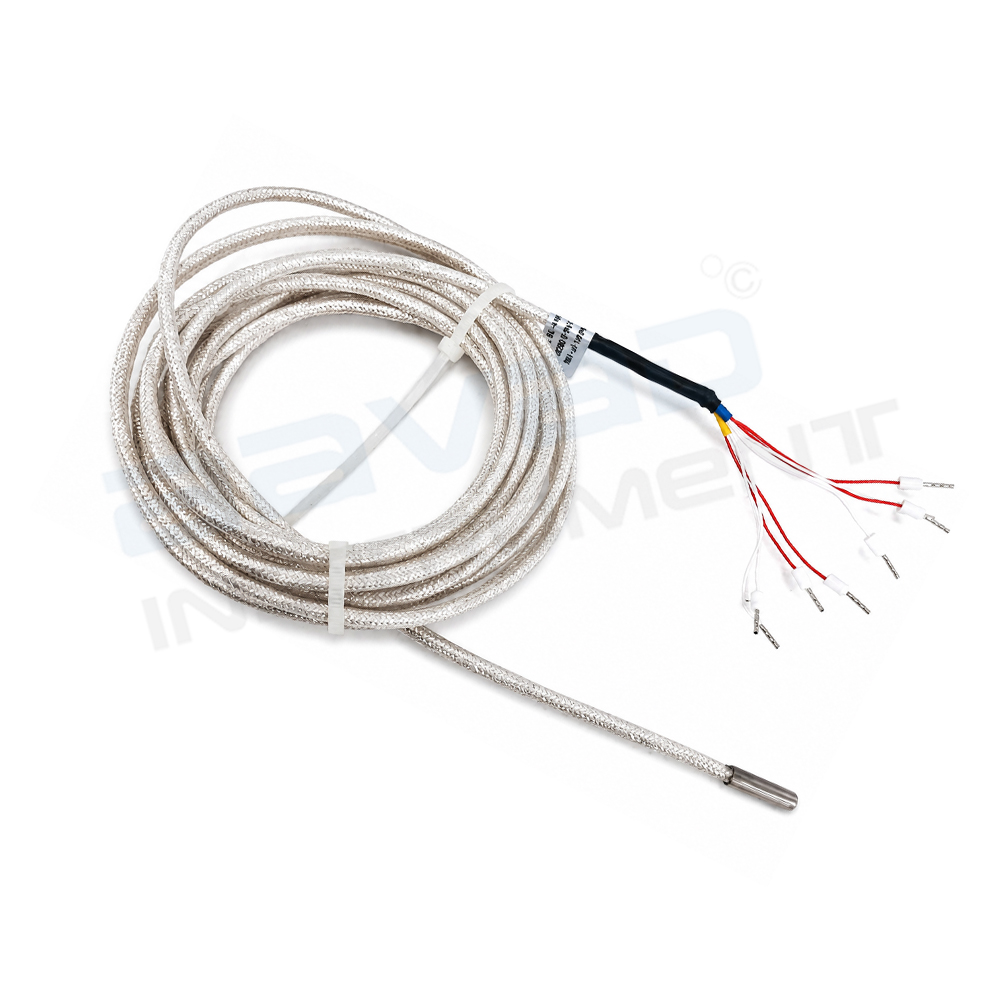

4-Wire Duplex RTD Sensor – 6 mm Tip Diameter × 18 mm Tip Length with 2 Meter Teflon/SS/Teflon Cable
The 4-Wire Duplex RTD (Pt100) Temperature Sensor is designed for precise and reliable temperature measurement in demanding industrial applications. It features two independent Pt100 sensing elements housed within a 6 mm diameter stainless steel probe with an 18 mm sensing tip length, providing high accuracy, redundancy, and uninterrupted process monitoring.
The sensor is equipped with a 2-meter Teflon/SS/Teflon insulated cable, offering excellent resistance to high temperatures, abrasion, moisture, chemicals, and harsh industrial environments. The 4-wire configuration eliminates lead wire resistance, ensuring highly accurate temperature measurement even over longer cable runs.
Constructed with a mineral insulated (MI) stainless steel sheath, the sensor provides fast response, superior mechanical strength, and long-term stability, making it ideal for critical industrial processes.
