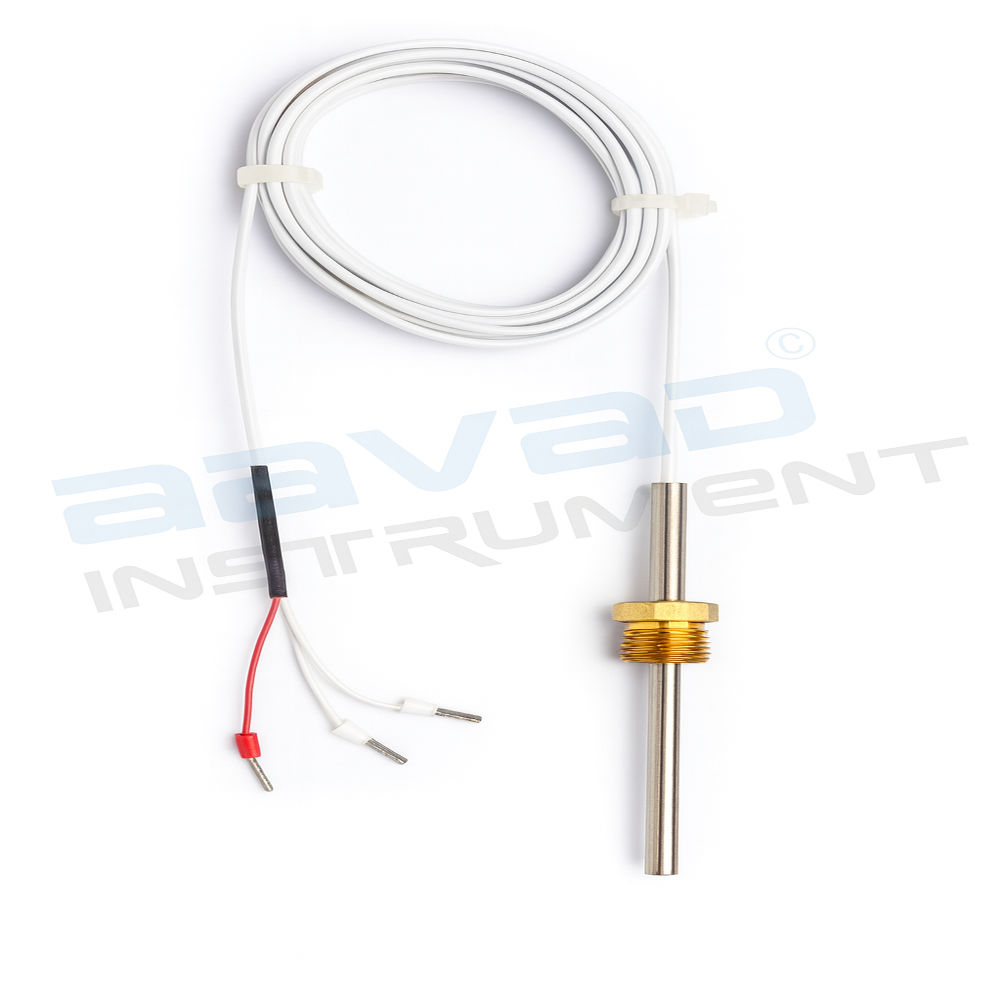

BTDS with extension cables

BTDS with extension cables

Wire Type RTD Sensor

Type: PT-100
Make: Aavad
Model: APES
Configuration: Simplex
Total no. of wires: 3
Accuracy: Class B
Temperature range: -50 To 400 Deg. C
Material of construction: SS 316
Insulation: Compacted MgO Insulation
Process connection size: 1/2” BSP (M) Fix fitting
Cable length: 2 Mtr
Cable type: TF/TF
Tip length: 75 mm
Sensor od: 6mm





Description

  • 3 wire RTDs have a third wire that provides a measurement of the resistance of the lead wire and subtracts this resistance from the read value. This correction compensates for the effect of the resistance of the long lead wires on the temperature measurement and results in improved accuracy.





APES_6X75
