Description

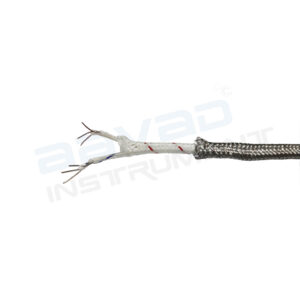

The K-Type Armoured Thermocouple Extension Cable is engineered to provide reliable thermocouple signal transmission in industrial environments where standard cables are vulnerable to mechanical damage. Designed for extending the millivolt signal from K-Type (Chromel-Alumel) thermocouples to temperature controllers, PLCs, DCS systems, recorders, and monitoring equipment, the cable incorporates a stainless steel braided or interlocked armour that protects against crushing, abrasion, impact, vibration, and rodent damage. This robust construction makes it an ideal choice for exposed cable routes, outdoor installations, underground conduits, and heavy industrial applications where long-term durability is essential.
Manufactured with Chromel-Alumel extension-grade conductors, the cable ensures dependable thermoelectric compatibility with K-Type thermocouples while maintaining accurate signal transmission over extended distances. The PVC-insulated 2-core construction provides dependable electrical insulation for general industrial environments, while the stainless steel armour enhances mechanical strength without compromising flexibility. The cable is available in standard accuracy (±2.2°C or ±0.75%) and special accuracy (±1.1°C or ±0.4%) grades, allowing users to select the appropriate performance level based on process requirements and measurement precision.
Key Features
-
Heavy-Duty SS Braided / Interlocked Armor Provides high tensile strength and crushing resistance to shield internal signal conductors from severe mechanical damage.
-
Calibrated Chromel-Alumel (Type K) Conductors Delivers linear, highly repeatable millivolt signal conversion for standard temperature ranges.
-
Selectable Accuracy Classes Available in Standard ($pm 2.2^circtext{C}$) or Special ($pm 1.1^circtext{C}$) Class limits of error to meet precise plant tolerance requirements.
-
Rodent & Impact Resistant Sheath Metallic armored structure prevents rodent chewing and guards against sharp edges, falling tools, or physical pinching.
-
High-Vibration & Outdoor Rated Flexible metallic outer construction withstands continuous mechanical vibration, outdoor weathering, and rough handling.
-
ISO 9001:2015 Quality Assured Precision-manufactured to ensure uniform conductor resistance and insulation thickness throughout the entire cable length.
Applications
-
Heavy Manufacturing & Process Plants Cable routing across steel mills, cement plants, foundries, and heavy machinery bays.
-
Refineries, Oil & Gas & Marine Installations Offshore decks, shipboard equipment rooms, and petrochemical process skids exposed to mechanical hazards.
-
Power Generation & Substation Facilities Signal transmission lines from boiler areas, steam turbines, and transformer vaults to control panels.
-
Underground & Outdoor Cable Networks Direct-buried or trench-routed thermocouple signal runs prone to physical disruption and pest damage.
-
High-Vibration Machinery Engine test stands, reciprocating compressors, and heavy rotating equipment lines.
Datasheet
FAQs
1. What is a K-Type Armoured Thermocouple Extension Cable?
A K-Type Armoured Thermocouple Extension Cable is designed to extend the millivolt (mV) signal from a K-Type thermocouple sensor to a temperature controller, PLC, indicator, recorder, or monitoring instrument while providing additional mechanical protection through stainless steel armouring. It is intended for reliable thermocouple signal transmission in harsh industrial environments.
2. Why is an Armoured Thermocouple Cable used?
Stainless steel armouring protects the cable against crushing, abrasion, mechanical impact, vibration, and rodent damage, making K-Type Armoured Thermocouple Extension Cables ideal for demanding industrial applications where enhanced durability and cable protection are required.
3. Why choose Aavad Instrument’s K-Type Armoured Thermocouple Extension Cable?
Aavad Instrument’s K-Type Armoured Thermocouple Extension Cable combines high-quality Chromel-Alumel extension-grade conductors with robust stainless steel armouring to deliver reliable signal transmission, superior mechanical protection, long service life, and dependable performance in harsh industrial environments.
