Description

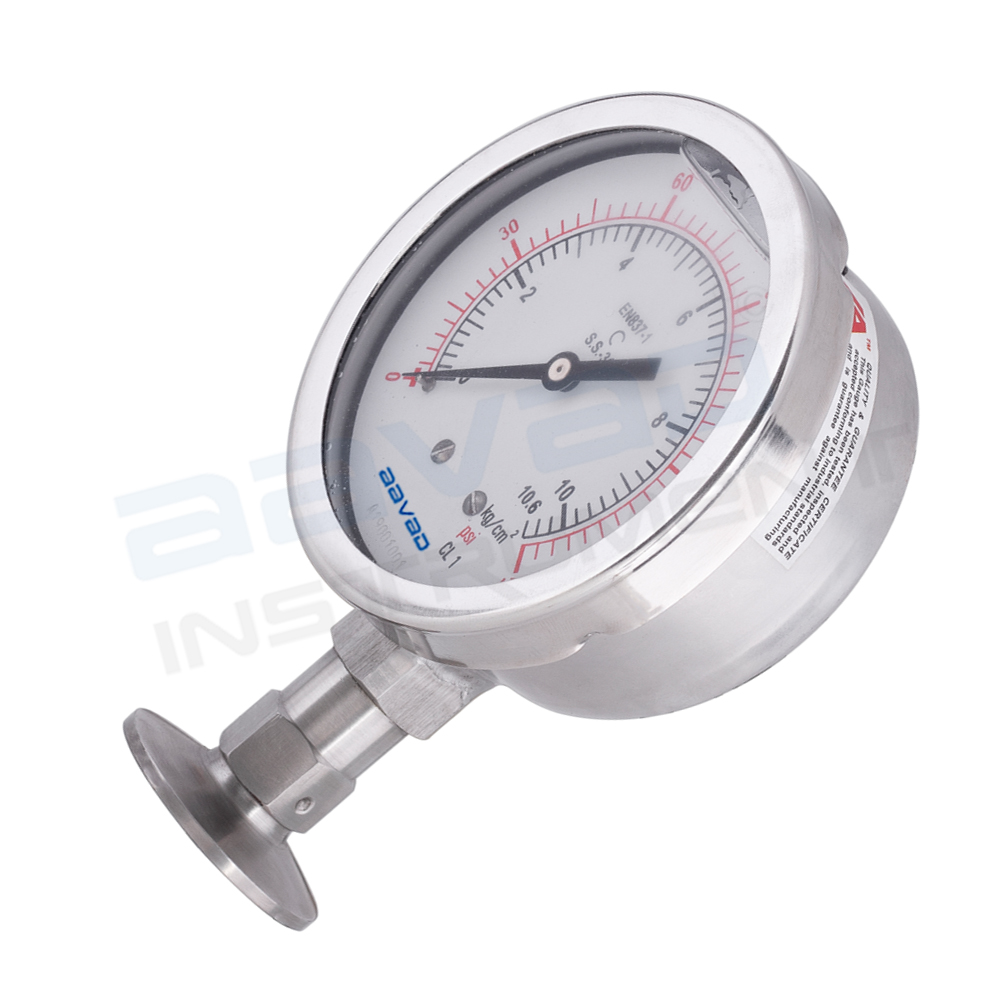

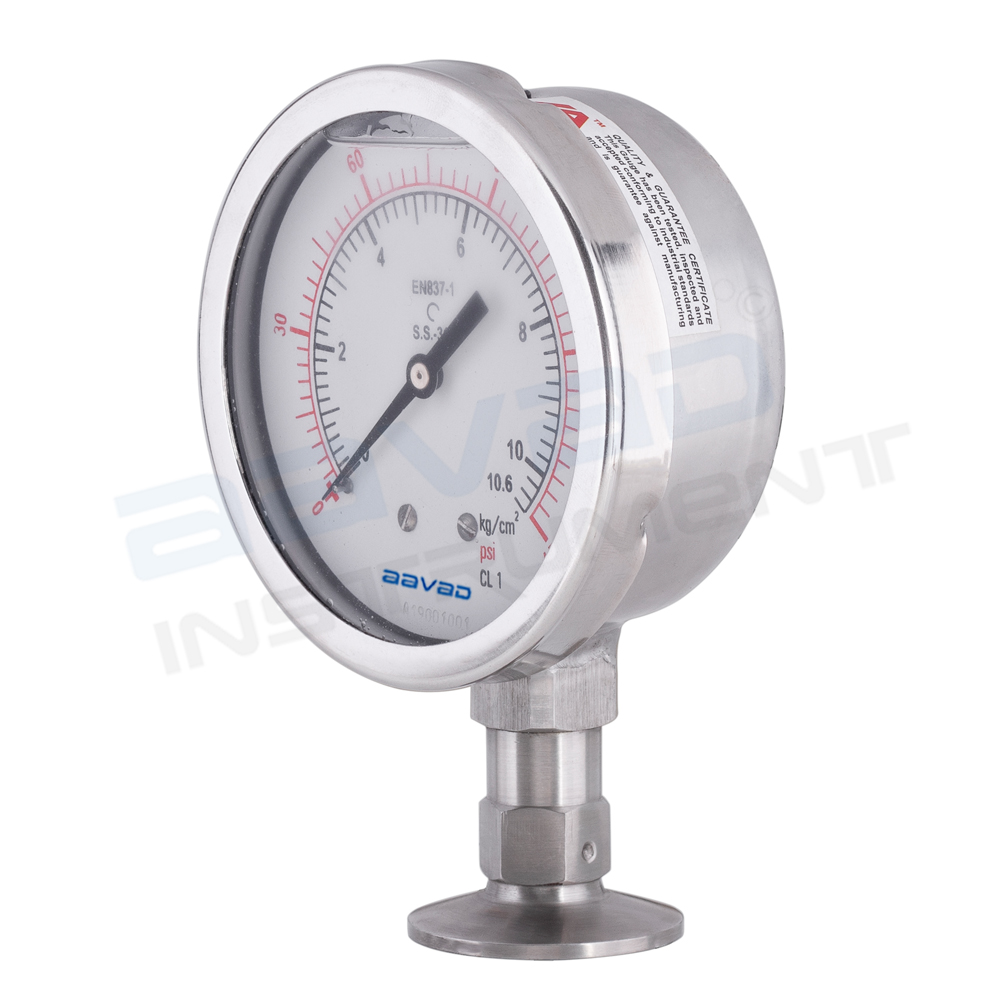

The Sanitary Pressure Gauge (also known as Hygienic Pressure Gauge or Tri-Clamp Pressure Gauge) by Aavad Instrument Pvt. Ltd. is purpose-built for food-grade, pharmaceutical, biotechnology, and clean-room applications where product purity, surface hygiene, and CIP/SIP (Clean-In-Place / Sterilize-In-Place) compatibility are non-negotiable requirements.
The smooth internal diaphragm prevents media entrapment, bacterial growth, and cross-contamination — making it the definitive choice where hygiene validation and traceability are mandatory.
Key Features
- Hygienic Process Connections: Tri-clover connection
- Wetted Material: SS 316L with Ra ≤ 0.8 µm (mirror-polished) internal surface finish
- Dial Size: 100 mm, 150 mm with clear white dial and easy-read scale
- Pressure Range: 0–1 bar to 0–40 bar; vacuum ranges available
- Sensing Element: Flush diaphragm — no crevices, dead legs, or product traps
- Fill Fluid: FDA-approved food-grade white oil or silicone (USP Class VI)
- Accuracy: ±1.6% FSD
- CIP/SIP compatible up to 150°C (302°F) process temperature
- ECOLAB and CIP chemical-resistant seals (EPDM, FKM options)
- Fully drainable ‘zero dead volume’ design
- Compliant with FDA 21 CFR, 3-A Sanitary Standards, EHEDG, GMP
- Available with electrical contact output for high/low alarm
- EN 10204 3.1 material certificates and NABL calibration reports
- Electropolished external finish available for cleanroom environments
Applications
- Pharmaceutical manufacturing — sterile formulation, WFI loops, CIP/SIP systems
- Biotechnology fermenters, bioreactors, and chromatography systems
- Dairy processing — pasteurizers, UHT systems, homogenizers, cream separators
- Brewery, winery, and distillery process lines
- Beverage and juice manufacturing (carbonated and non-carbonated)
- Food ingredient processing — sauces, ketchup, and paste production
- Cosmetics and personal care product manufacturing
- Nutraceutical and health supplement production
- Hospital and medical gas supply monitoring
- Reverse osmosis and water purification systems in food plants
Datasheet
FAQs
1. What is a Sanitary Pressure Gauge?
A Sanitary Pressure Gauge is a hygienic pressure measuring instrument designed with a flush diaphragm and a Tri-Clamp (Tri-Clover) process connection for accurate pressure measurement in food processing, dairy, beverage, pharmaceutical, biotechnology, and other sterile process applications. Its hygienic design minimizes contamination and supports clean-in-place (CIP) and sterilize-in-place (SIP) processes.
2. Why does a Sanitary Pressure Gauge use a Flush Diaphragm?
A flush diaphragm eliminates dead spaces and cavities where product residue, bacteria, or contaminants can accumulate. This improves cleanability, hygiene, and process safety, making the gauge ideal for sanitary applications requiring strict cleanliness and compliance with hygienic processing standards.
3. What is a Tri-Clamp Connection?
A Tri-Clamp (Tri-Clover) connection is a hygienic quick-connect fitting widely used in the food, beverage, dairy, pharmaceutical, biotechnology, and cosmetic industries. It enables fast installation, easy removal, leak-free sealing, and efficient cleaning, making it the preferred connection for sanitary process equipment.
