Description

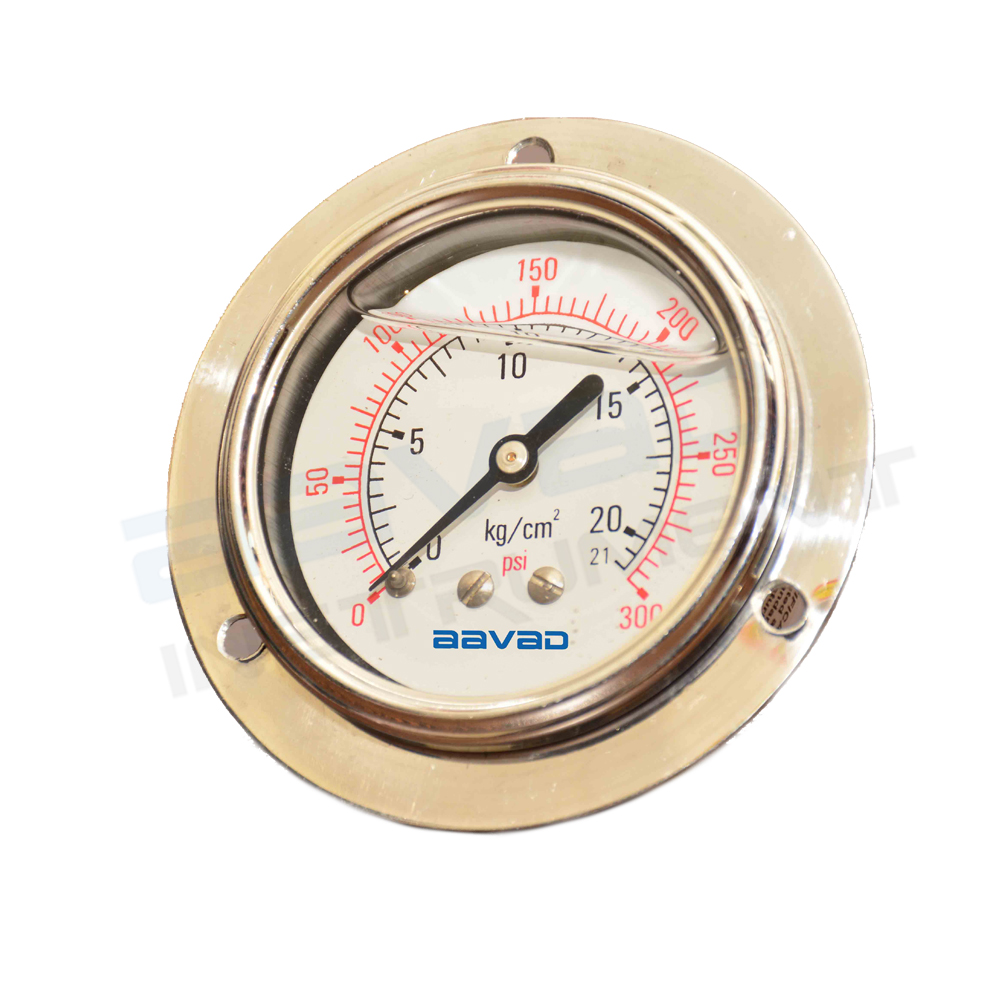

Aavad Instrument Pvt. Ltd. presents the Analogue Panel Mounted Pressure Gauge — an economical, panel-mount Bourdon tube pressure gauge engineered for permanent installations on control panels, switchgear, machine consoles, and instrumentation racks. Designed with back-connection panel mounting, this analogue pressure gauge allows direct integration into electrical panels, hydraulic power units, and OEM machine skids without requiring external bracketry, making it the go-to choice for panel builders and machine manufacturers across India.
Built with an SS 304 bayonet case, SS 316 Bourdon tube, and fully glycerine-filled internals as standard, this panel-mounted pressure gauge resists pointer flutter from pump vibration and pressure pulsation, delivering stable, accurate readings even in continuously running hydraulic and pneumatic systems. With a wide range of 0 to 21 kg/cm² and ±1.0% FSD accuracy, it is suited for general hydraulic, pneumatic, and process applications that demand reliable, permanently mounted pressure indication.
Key Features
- Mounts straight through the panel face with a back connection — no external brackets, no extra fittings, just a clean cutout install that panel builders can wire into their layout in minutes
- Glycerine-filled as standard, not an optional upgrade — pointer stays steady on continuously running hydraulic power units where pump pulsation would otherwise blur the reading
- 0–21 kg/cm² range covers most general hydraulic and pneumatic panel applications with one part number, simplifying BOM management for OEM machine builders
- Economical pricing makes it practical to specify on every panel in a multi-unit production run, without the cost penalty of an industrial-grade process gauge where it isn’t needed
- SS 304/316 build still delivers real durability despite the budget-friendly price point — this isn’t a throwaway plastic gauge, it’s built to last on the panel for the life of the machine
- Available with custom dial sizes and OEM branding for manufacturers who need consistent panel aesthetics across a full equipment line
Applications
- Electrical and hydraulic control panel pressure indication
- Hydraulic power pack (HPU) panel-mounted pressure display
- Pneumatic control systems and machine consoles
- OEM machinery and equipment panel integration
- Compressor control panel pressure monitoring
- Switchgear and instrumentation rack-mounted pressure display
- Industrial automation panel pressure indication
- Process skid and packaged unit pressure gauges
- Pump house panel-mounted pressure monitoring
- Generic plant utility pressure indication on control desks
Datasheet
FAQs
1. What is an Analogue Panel Mounted Pressure Gauge?
An Analogue Panel Mounted Pressure Gauge is a Bourdon tube pressure measuring instrument designed for installation in control panels, machine consoles, instrumentation panels, and industrial equipment. It provides continuous, local indication of liquid, gas, and air pressure for process monitoring and control.
2. How does a Bourdon Tube Pressure Gauge work?
A Bourdon tube pressure gauge operates using a curved metallic Bourdon tube that flexes when internal pressure is applied. This mechanical movement is transmitted through a precision linkage mechanism to the pointer, which indicates the corresponding pressure value on the gauge dial.
3. Why is the Gauge Glycerine Filled?
The glycerine-filled pressure gauge dampens pointer movement caused by hydraulic pulsation, compressor cycling, pump vibration, and mechanical shock. This provides smoother, more stable pressure readings, improves readability, and helps extend the service life of the internal mechanism.
4. What pressure range does this Gauge measure?
This model measures pressures from 0 to 21 kg/cm², making it suitable for a wide range of hydraulic systems, pneumatic equipment, compressors, pumps, process industries, OEM machinery, and industrial automation applications.
5. What materials are used in the Pressure Gauge?
The pressure gauge is manufactured with an SS304 stainless steel bayonet case and an SS316 stainless steel Bourdon tube, providing excellent corrosion resistance, mechanical durability, and long service life in demanding industrial environments.
