Description

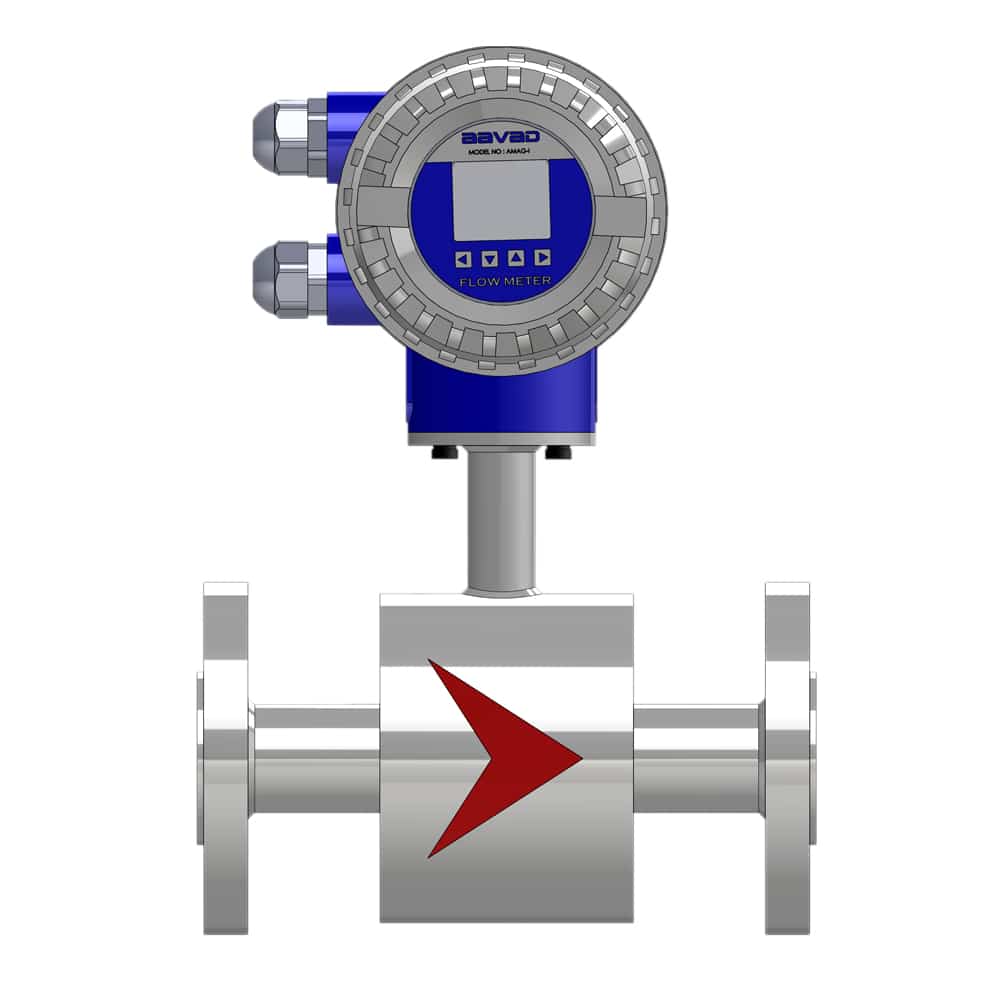

Engineered for industrial chemical, pharmaceutical, and water infrastructure applications, the AAVAD Model AMAG Electromagnetic Flow Meter provides high-accuracy volumetric measurement for conductive liquids. Manufactured with durable PTFE/Neoprene linings and Hastelloy/SS316 electrodes, this meter delivers zero maintenance and high resistance to abrasive slurries or aggressive chemicals. Equipped with dual 4-20mA current loop and RS485 Modbus outputs, it integrates directly with PLC, SCADA, and CGWA online telemetry portals.
Key Features
-
Mandatory CGWA & State Ground Water Authority Compliance Pre-configured hardware and secure cloud telemetry architecture deliver automated data uploading to meet government mandates.
-
Integrated Telemetry with M2M 4G Connectivity Includes a pre-installed M2M SIM card, 1 year of cloud data hosting, and automated SMS/email alert features out of the box.
-
High Measurement Precision ($pm 0.5%$ of Reading) Advanced signal processing provides tight volumetric accuracy superior to conventional $pm 1.5%$ full-scale flow meters.
-
Rugged IP68 Fully Submersible Housing Die-cast aluminum transmitter head rated IP68 allows continuous operation in flooded meter pits, outdoor borewells, and harsh weather.
-
Obstructionless Flow Path with PTFE Liner Full-bore design with non-stick PTFE lining prevents pressure drops and eliminates wear from suspended solids or sand.
-
Comprehensive Industrial Communication Outputs Equipped with RS-485 Modbus RTU, galvonomically isolated 4–20 mA, and scaled pulse outputs for easy PLC/DCS integration.
-
Multi-Line Backlit LCD Display Clear $16 times 4$ character screen displays instantaneous flow rate, net forward/reverse totals, and telemetry connection status inline.
Applications
-
Borewell & Industrial Groundwater Extraction Continuous monitoring and cloud data reporting for CGWA regulatory compliance.
-
Sewage Treatment Plants (STP) & Effluent Treatment Plants (ETP) Accurately measuring treated discharge, inlet raw sewage, and industrial effluent streams.
-
Industrial Process & Utility Water Lines Monitoring raw water intake, boiler feedwater, cooling tower makeup, and factory distribution networks.
-
Commercial Real Estate & Infrastructure Facilities Bulk water metering for residential complexes, IT parks, shopping malls, and institutional campuses.
-
Government Water Supply Schemes & Smart Cities Water distribution tracking and Non-Revenue Water (NRW) audit monitoring across municipal networks.
Datasheet
FAQs
1. What is an Electromagnetic Flow Meter?
An Electromagnetic Flow Meter (Mag Flow Meter) is a precision flow measurement device that measures the flow rate of electrically conductive liquids using Faraday’s Law of Electromagnetic Induction. Since it has no moving parts, it offers high accuracy, low maintenance, minimal pressure loss, and reliable long-term performance in industrial and municipal applications.
2. How does an Electromagnetic Flow Meter work?
An electromagnetic flow meter generates a magnetic field across the flow tube. As a conductive liquid passes through this magnetic field, it induces a voltage proportional to the liquid’s flow velocity. The transmitter measures this voltage and converts it into an accurate volumetric flow rate, making the technology highly reliable for continuous flow monitoring.
3. Can an Electromagnetic Flow Meter measure drinking water?
Yes. Electromagnetic Flow Meters are widely used for measuring potable water, raw water, treated water, groundwater, process water, and industrial water. They provide accurate, repeatable, and maintenance-friendly flow measurement for water distribution networks, treatment plants, and industrial process applications.
4. Can it measure groundwater for CGWA compliance?
Yes. The AMAG-I Electromagnetic Flow Meter is specifically designed for groundwater monitoring and is available with integrated telemetry features to support Central Ground Water Authority (CGWA) reporting requirements. Depending on the selected configuration, it can provide real-time flow data transmission for groundwater abstraction monitoring and regulatory compliance.
5. Which industries use Electromagnetic Flow Meters?
Electromagnetic Flow Meters are widely used in:
• Water Treatment Plants
• Wastewater Management
• Chemical Processing
• Pharmaceutical Manufacturing
• Food & Beverage Industries
• Paper & Pulp Mills
• Power Plants
• Irrigation Systems
• Municipal Water Supply
• Mining & Mineral Processing
Their ability to measure conductive liquids accurately without moving parts makes them suitable for a wide range of industrial and utility applications.
6. Why Choose Aavad Instrument Electromagnetic Flow Meters?
Aavad Instrument Pvt. Ltd. Electromagnetic Flow Meters are engineered for high-accuracy flow measurement with ±0.5% accuracy, rugged industrial construction, and reliable long-term performance. The AMAG-I model supports 4–20 mA, Pulse, RS-485 (Modbus), optional telemetry with M2M SIM, and configurations suitable for CGWA groundwater monitoring, making it an ideal solution for industrial automation, water management, and regulatory compliance applications.
