Description
K Type Thermocouple Compensating Cable is designed for economical and reliable transmission of K-Type thermocouple signals between the sensing point and temperature measuring instruments. Unlike thermocouple-grade cable, a compensating cable uses specially selected alloy conductors that closely match the thermoelectric characteristics of a K-Type thermocouple over a specified ambient temperature range, providing a cost-effective solution for industrial installations where full thermocouple-grade conductors are not required. It is widely used to connect thermocouples to temperature controllers, PLCs, DCS systems, indicators, recorders, and industrial automation equipment while maintaining dependable signal accuracy under normal operating conditions.

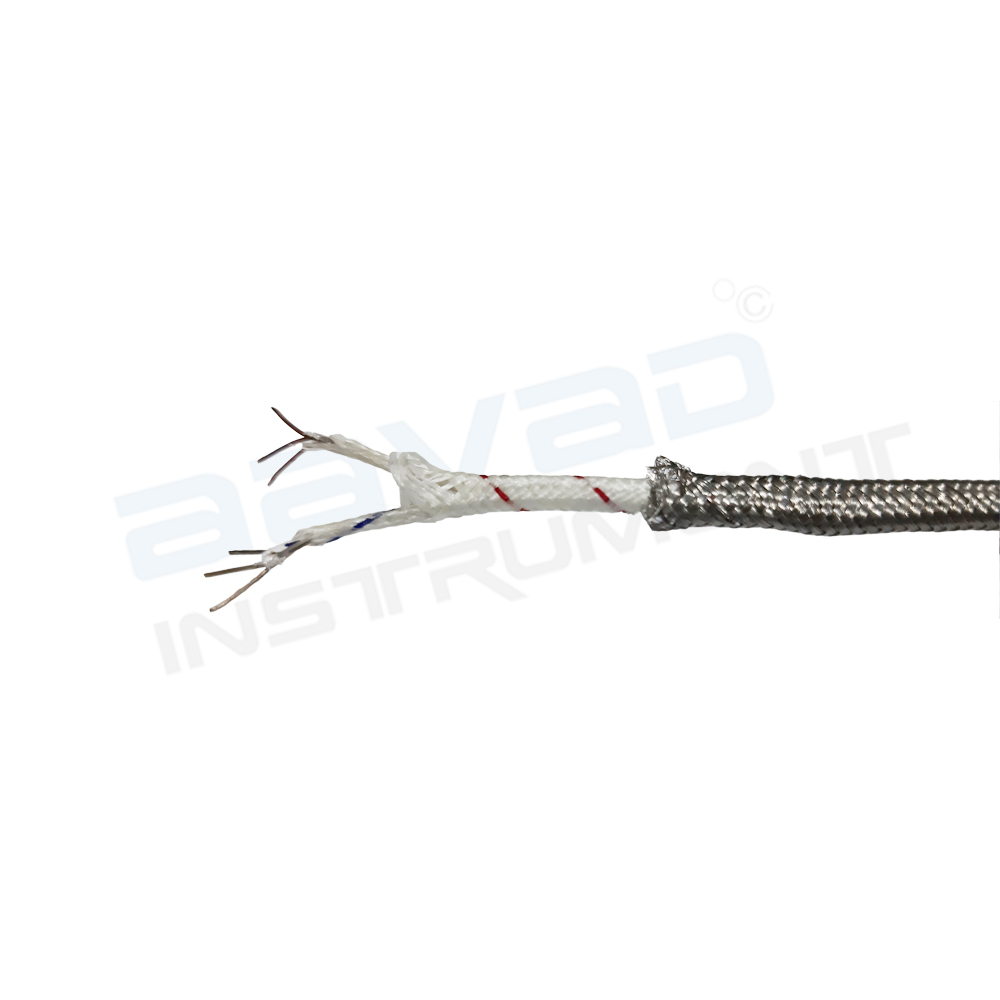

This cable features fibreglass inner and middle insulation with an overall stainless steel braided outer layer, providing excellent resistance to heat, abrasion, vibration, and mechanical damage. Rated for ambient temperatures up to 480°C, the cable is manufactured in a 3-conductor, 24 SWG construction, offering reliable performance in demanding industrial environments.
Key Features
-
Cost-Effective Substitute Alloys Specially formulated conductor alloys emulate Type K ($text{Ni-Cr / Ni-Al}$) millivolt response, lowering total installation costs over long cable runs.
-
Triple-Layer FG/FG/SS Construction Double-braided high-purity fiberglass yarn with an outer overall Stainless Steel (SS) metal braid for superior thermal and physical protection.
-
Rated to 480°C Continuous Inner fiberglass layers easily withstand high radiant temperatures, thermal exposure, and hot spots up to 480°C.
-
Mechanical Armor & EMI Shielding Stainless steel outer braid protects the inner conductors from physical crushing, cut-through, and factory electrical noise.
-
Flexible 24 SWG Conductor Profile Standard 24 SWG conductor sizing offers the ideal balance of signal conductivity and physical flexibility for tight wiring channels.
-
3-Conductor Options Versatile configuration designed to accommodate standard measurement and grounded/shielded circuit setups.
Applications
-
Long-Distance Controller Interconnects Route sensor signals from field junction boxes to central control rooms across large manufacturing facilities.
-
Process Instrumentation Panels Connecting temperature indicators, digital recorders, and PLC cards to remote thermal sensors.
-
OEM Sensor Manufacturing & Panel Building Building cost-effective temperature sensing harnesses for industrial ovens and processing machinery.
-
Plant Retrofit & Maintenance Operations Replacing damaged or degraded high-temperature wiring in existing plant conduit lines.
Datasheet
FAQs
1. What is a K-Type Compensating Cable?
A K-Type Compensating Cable is designed to transmit the millivolt (mV) signal from a K-Type thermocouple to temperature controllers, PLCs, indicators, recorders, and other measuring instruments using specially selected alloy conductors that closely approximate the thermoelectric characteristics of a K-Type thermocouple within a specified ambient temperature range.
2. What is the difference between a Compensating Cable and an Extension Cable?
A Compensating Cable uses substitute alloy conductors that provide similar thermoelectric characteristics to the thermocouple over a limited ambient temperature range, whereas an Extension Cable uses extension-grade conductors specifically matched to the thermocouple type for accurate signal transmission between the sensor and the measuring instrument.
