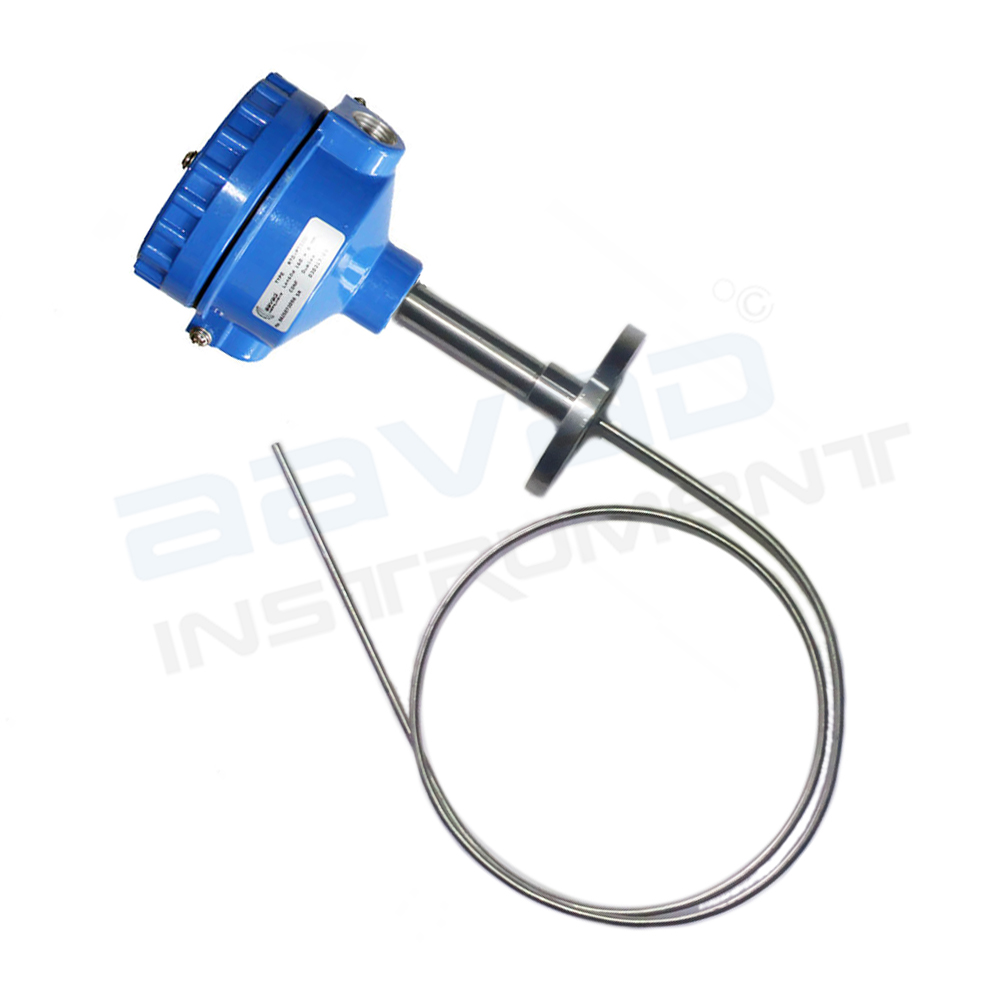

Type: K (Cr/Al)
Make: Aavad
Model: AKFS-I6S
Configuration: Simplex
Temperature range: 0 To 850℃
Material of construction: Inconel 600
Insulation: Compacted MgO insulation
Process connection: Nipple connection with 1″ ss flange
Protection head: Die-cast aluminum flameproof head with threaded cap & chain
Head protection class: IP-67
Head cable entry connection: ¾ “Et
No. of cable entry: Single
Terminal block: Nickel-plated ceramic terminal block
Od: 8 mm
Mineral insulated thermocouples consist of an outer metal sheath which protects the thermocouple elements from damage and contamination, this sheath is malleable so mineral insulated thermocouples can be easily bent and formed into a variety of shapes to suit your application.
