Description

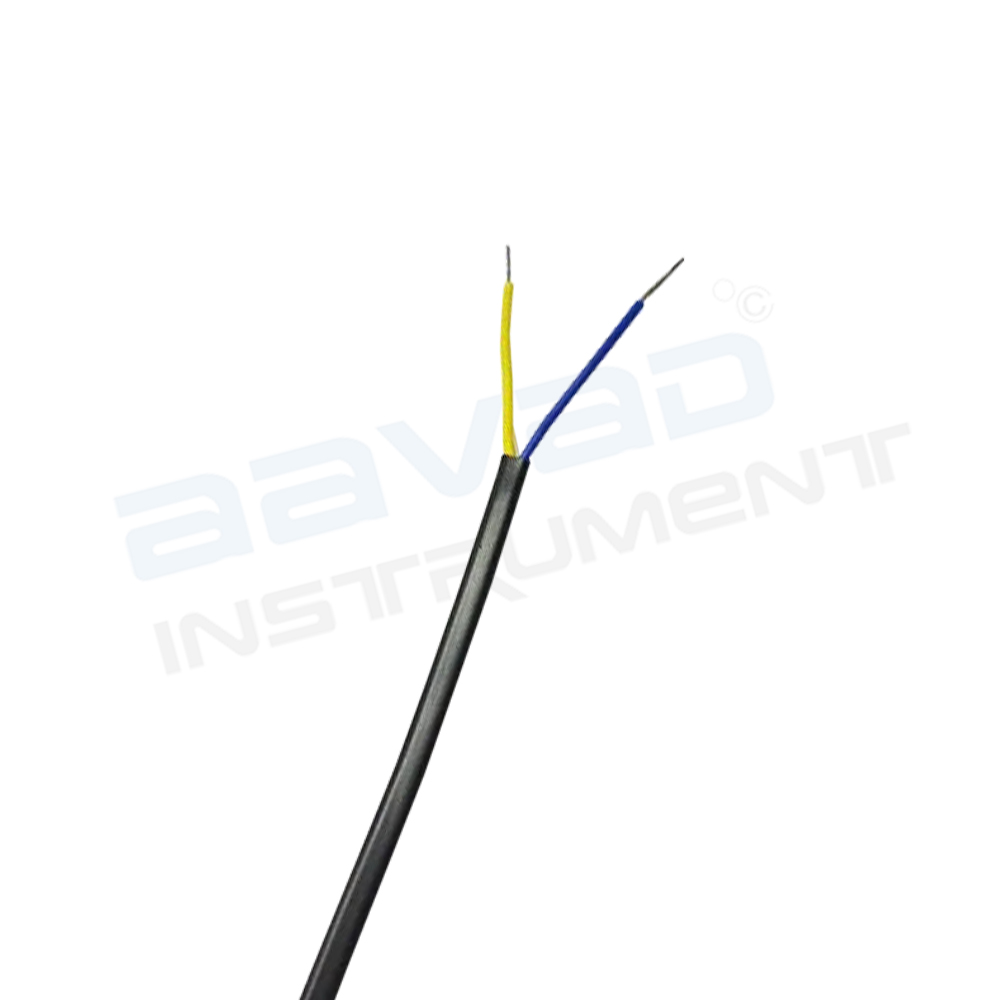

The Single Pair FR PVC Thermocouple Cable is designed for safe and reliable temperature signal transmission in industrial instrumentation systems where flame-retardant cable construction is required. Manufactured with high-quality nickel alloy conductors, this cable provides dependable signal transmission between thermocouples and temperature controllers, PLCs, DCS systems, indicators, recorders, and industrial automation equipment. Its single-pair construction makes it ideal for compact installations where a single thermocouple circuit is required while minimizing cable size and simplifying routing inside electrical panels and instrumentation cabinets.
The cable is insulated with Flame Retardant (FR) PVC, which helps reduce flame propagation and improves safety in enclosed electrical installations. Designed for ambient temperatures up to 105°C, the cable offers excellent electrical insulation, flexibility, and mechanical durability for everyday industrial environments. The compact construction makes installation easier in confined spaces while maintaining reliable performance in control panels, junction boxes, OEM machinery, and automation systems.
Key Features
-
Flame-Retardant (FR) PVC Compound Self-extinguishing outer jacket and core insulation that resists ignition and prevents flame spread along cable pathways.
-
Compact Single-Pair Configuration Space-saving two-conductor geometry minimizes bulk in crowded cable trays, terminal boxes, and PLC cabinets.
-
1100V Heavy-Duty Isolation Grade High dielectric rating guards low-level millivolt thermocouple signals against induction noise and power-line voltage surges.
-
105°C Continuous Temperature Rating Heat-resistant PVC formulation maintains insulation flexibility and resistance to thermal degradation up to 105°C.
-
High-Purity Thermo-Alloy Conductors Precision drawn nickel-alloy cores ensuring linear thermal response across standard thermocouple calibrations (Types K, J, T, E).
-
Smooth Outer Sheath for Easy Pulling Low-friction jacket profile allows smooth installation through long conduit bends without snagging or jacket tearing.
Applications
-
Control Panels & Instrumentation Cabinets Inter-panel wiring connecting field terminal blocks to central PLC cards, controllers, and recorders.
-
Commercial & Light Industrial Facilities Temperature monitoring circuits in food processing, packaging equipment, and manufacturing lines.
-
HVAC Systems & Building Automation Signal loops for central chiller plants, air handling units (AHUs), and boiler control networks.
-
Fire-Safety Sensitive Installations Ideal for oil refineries, chemical plants, and public infrastructure where strict flame-retardant wiring codes apply.
Datasheet
FAQs
1. What is a Single Pair FR PVC Thermocouple Cable?
A Single Pair FR PVC Thermocouple Cable is an instrumentation cable designed to transmit temperature signals from a single thermocouple to temperature controllers, PLCs, indicators, recorders, and other monitoring equipment while providing flame-retardant protection for safer industrial installations.
2. What does FR PVC mean?
FR PVC stands for Flame Retardant Polyvinyl Chloride, an insulation material specifically designed to reduce flame spread, improve fire safety, and provide reliable electrical insulation in industrial and commercial electrical installations.
3. What is the difference between FR PVC and Standard PVC Thermocouple Cable?
FR PVC Thermocouple Cables provide the same reliable electrical insulation and flexibility as standard PVC cables but include enhanced flame-retardant properties that help reduce fire propagation in enclosed industrial installations, improving overall electrical safety.
