Turbine Bearing Sensor
Turbine Bearing Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APED-3×8 |
| Configuration | Duplex |
| Total no. of wires | 3+3 Wire |
| Accuracy | Class A / Class B (Optional) |
| Temperature range | -50 To 250 Degrees C |
| Sheath Material | SS 316 |
| Insulation | Compacted MgO Insulation |
| Cable length | 2 Meter |
| Cable insulation | FEP/FEP Insulated SS Braided Flexible Cable |
| Sheath Diameter | 3 mm |
| Sheath Length | 8 mm |
| Standard | IEC 60751 / IS 2848 |
Description

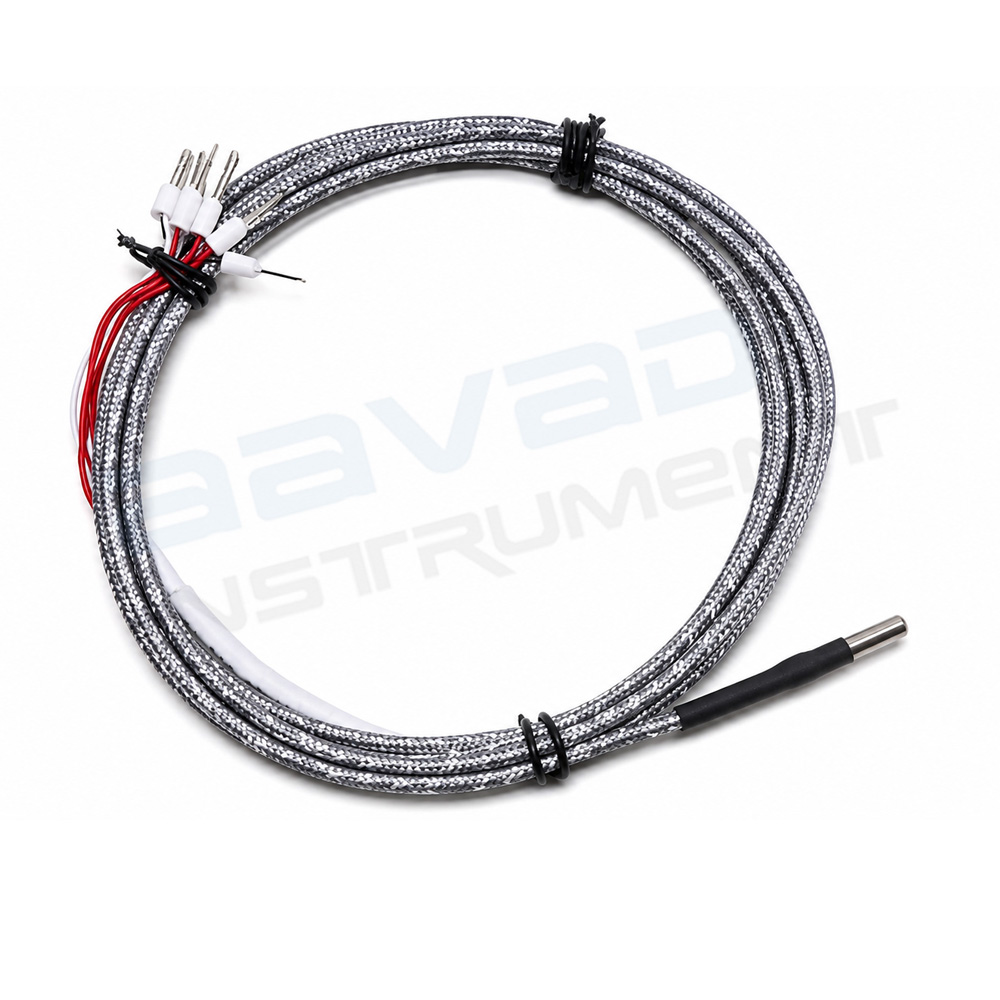

Turbine Bearing Sensor
The Turbine Bearing Sensor is a high-precision RTD PT100 temperature sensor specially designed for continuous and accurate temperature monitoring of turbine bearings in critical industrial applications. By providing real-time bearing temperature measurement, this sensor helps detect overheating at an early stage, preventing bearing damage, unexpected equipment failure, costly downtime, and unplanned maintenance.
AAVAD Instrument Pvt. Ltd. manufactures premium-quality Turbine Bearing Sensors using a 3 mm SS316 stainless steel sheath and a Duplex PT100 sensing element to ensure exceptional accuracy, long-term stability, and reliable performance in harsh industrial environments. The sensor is fitted with a FEP/FEP insulated stainless steel braided flexible cable, offering excellent resistance to high temperatures, vibration, oil, moisture, and mechanical stress.
Designed and manufactured in accordance with IEC 60751 / IS 2848 standards, our RTD PT100 Turbine Bearing Sensor provides fast response time, repeatable measurement accuracy, and dependable operation in continuous-duty applications. The compact design allows easy installation in confined bearing housings, while the duplex configuration provides redundant temperature sensing for improved equipment safety and process reliability.
The Turbine Bearing Sensor is widely used for monitoring steam turbines, gas turbines, hydro turbines, turbo generators, compressors, pumps, motors, and other rotating machinery. It can be seamlessly integrated with PLC, DCS, SCADA, and industrial automation systems for real-time monitoring, predictive maintenance, and condition-based maintenance programs.
Engineered for demanding industries such as power generation, thermal power plants, hydroelectric plants, oil & gas, petrochemical, steel, cement, paper, chemical, and heavy engineering, AAVAD’s RTD PT100 Turbine Bearing Sensor delivers reliable performance, extended service life, and accurate temperature measurement under the most challenging operating conditions.
As a trusted Temperature Sensor Manufacturer in India and GeM Registered Supplier, AAVAD Instrument Pvt. Ltd. is committed to delivering precision-engineered temperature sensing solutions that comply with international quality standards. We also offer customized probe lengths, cable lengths, wire configurations, and sensor designs to meet the specific requirements of OEMs, EPC contractors, and industrial end users.
Whether you require a standard or custom-built Turbine Bearing Sensor, AAVAD provides high-quality, durable, and cost-effective solutions that improve equipment reliability, reduce maintenance costs, and maximize plant productivity.
