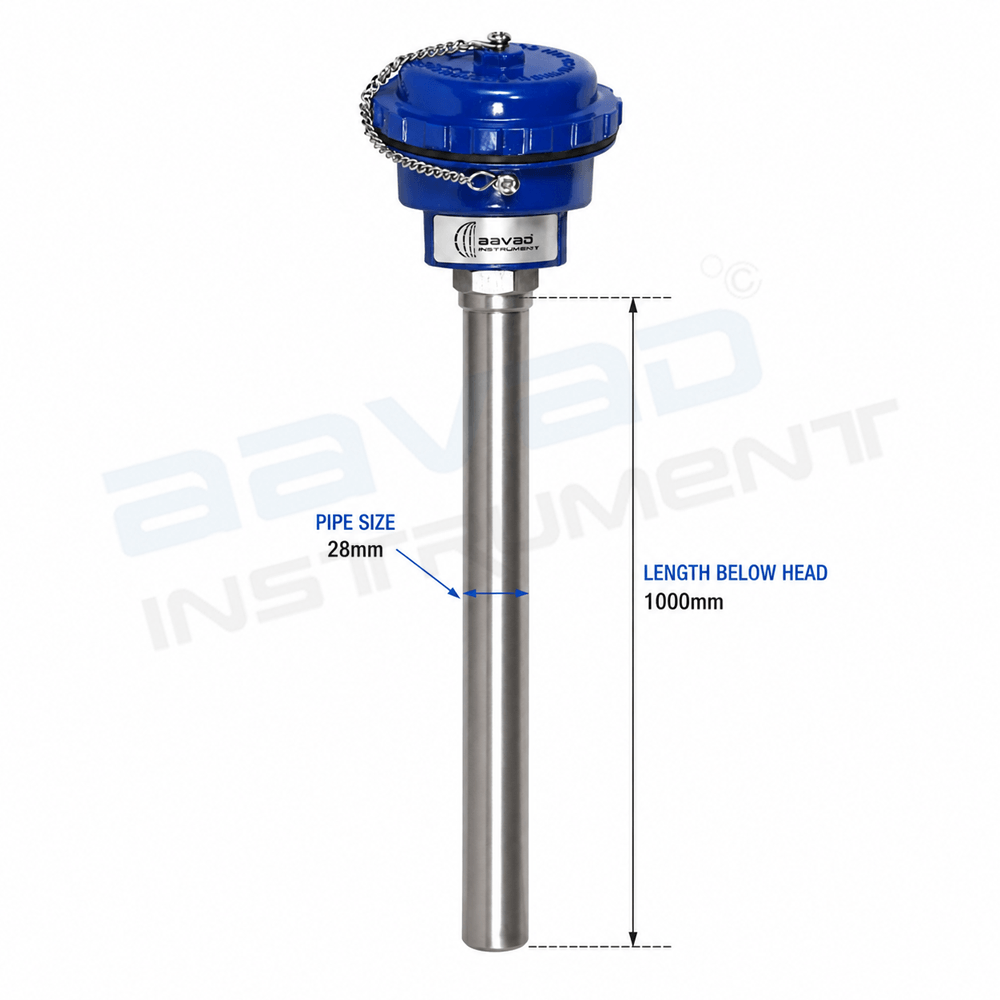

Barstock Thermocouple
Barstock Thermocouple
| Parameter | Specification |
|---|---|
| Type | K (CR/AL) |
| Make | Aavad |
| Model | AKWS-28X1000 |
| Configuration | Simplex |
| No. of wire | 2 Wire |
| Temperature range | 0 to 1200 Degree C |
| Material of construction | SS 310 |
| Insulation | Compacted MgO insulation |
| Protection head | Die-Cast aluminum head with threaded cap & chain |
| Head protection class | IP-65 |
| Head cable entry connection | 3/4″ ET |
| No. of cable entry | Single |
| Terminal block | Nickel-Plated ceramic terminal block |
| Element | 10 SWG |
| Od | 28 mm |
| Length below head | 850 mm |
Description
Barstock Thermocouple is a robust and industrial-grade temperature sensor designed for accurate and reliable temperature measurement in demanding process applications. It is manufactured using a solid barstock thermowell construction, providing excellent mechanical strength and protection against high pressure, vibration, corrosion, and harsh operating conditions.
The thermocouple assembly can be supplied with J, K, T, E, N, or other thermocouple types, depending on the required temperature range and application. The sensor is available with customized insertion length, process connection, sheath material, and head/enclosure options to suit different industrial requirements.
Barstock Thermocouples are widely used in chemical plants, petrochemical industries, refineries, power plants, oil & gas, pharmaceuticals, cement plants, steel industries, furnaces, boilers, and process equipment where dependable temperature measurement is essential.
