Description

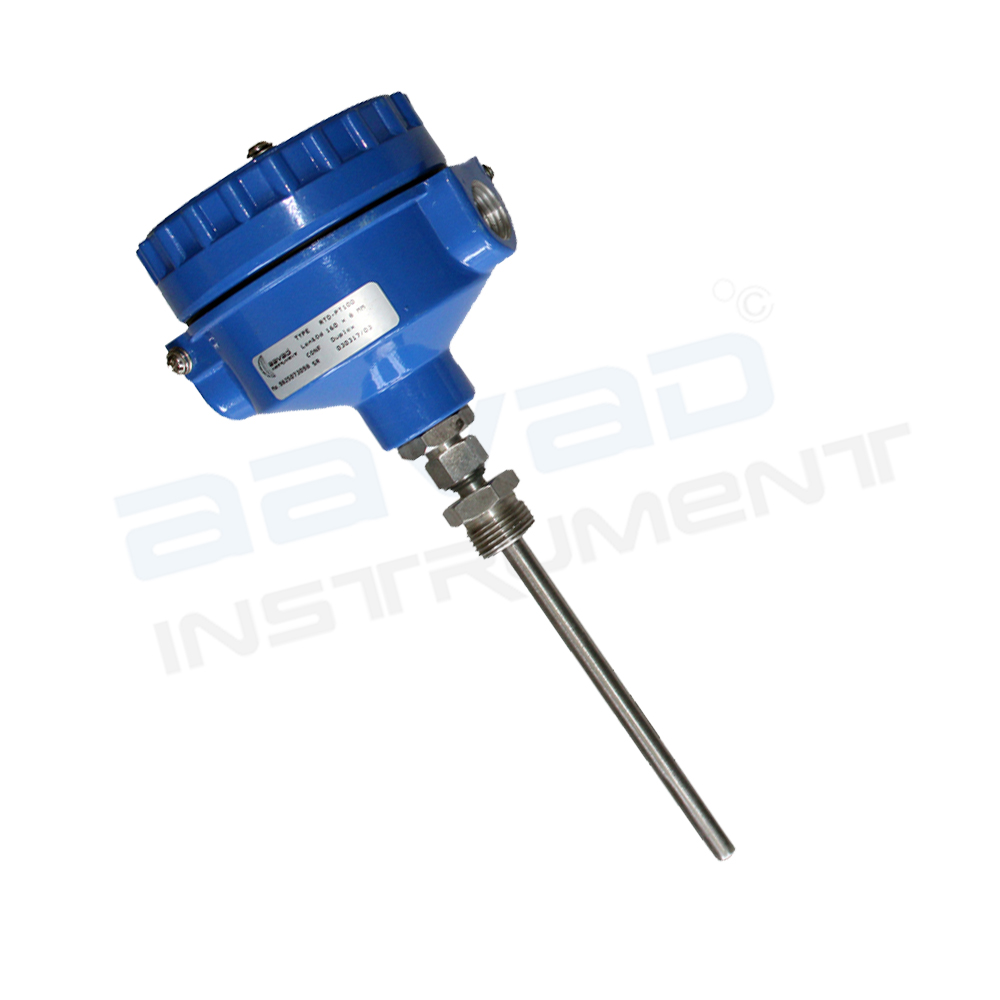

Simplex Flameproof Thermocouple is a heavy-duty K-Type industrial temperature sensor engineered for reliable temperature measurement in hazardous environments and continuous high-temperature processes. Built with a premium Inconel 600 protection sheath, this thermocouple offers outstanding resistance to oxidation, scaling, and thermal fatigue, making it an ideal solution for industrial applications where sheath longevity is as important as measurement accuracy.
The thermocouple utilizes a K-Type (Chromel-Alumel) sensing element capable of measuring temperatures from 0°C to 850°C. While this temperature range is similar to stainless steel-sheathed thermocouples, the use of Inconel 600 significantly improves resistance to prolonged exposure in oxidizing atmospheres and repeated thermal cycling. This makes the sensor particularly suitable for continuous-duty furnaces, kilns, combustion systems, and process heating equipment.
Designed for hazardous industrial installations, the AKFS-I6S features a robust flameproof die-cast aluminium terminal head with IP67 protection, safeguarding electrical connections against dust, moisture, and harsh environmental conditions. The 1800 mm insertion length, 6 mm sheath diameter, and adjustable 1/2″ BSP process connection provide installation flexibility while ensuring accurate process temperature measurement.
Key Features
-
Premium Inconel 600 Protection Sheath High-nickel alloy composition delivers unmatched resistance to surface scaling and structural degradation under extreme thermal cycles.
-
Certified Flameproof IP67 Enclosure Heavy-walled explosion-proof aluminum terminal head safely isolates internal wiring junctions from volatile, classified plant environments.
-
Sliding Adjustable 1/2″ BSP Connector Integrated compression fitting allows field installation teams to easily position and lock down the exact immersion depth on-site.
-
Highly Responsive 6 mm Outer Diameter Slim probe geometry ensures rapid thermal tracking response while maintaining dependable structural stiffness.
-
Practical 1800 mm Mid-Length Layout Long-reach probe dimension reaches deep into primary furnace walls and chemical reactor cores without excessive bulk.
-
Cost-Efficient 2-Wire Simplex Design Generates a direct, clean millivolt feedback signal optimized for standard factory PLCs, data loggers, and PID controllers.
-
Weatherproof Single Cable Entry Hub Engineered with tight, sealed thread entry pathways to lock out heavy outdoor moisture, dust, and corrosive plant vapors.
-
Traceable NABL Certification Available Can be supplied with formal, nationally certified calibration documentation to fulfill strict corporate compliance audits.
Applications
-
Continuous Thermal Cycling Industrial Furnaces Long-life temperature profiling inside heavy forge ovens, heat-treatment cells, and brick kilns.
-
Classified Petrochemical Processing Units Safe temperature tracking inside gas cracking lines, volatile reactor vessels, and chemical distillation towers.
-
Gas Turbines and Internal Combustion Exhausts Monitoring high-velocity, turbulent exhaust streams inside large diesel gensets and power plant manifolds.
-
Utility Power Generation and Primary Boiler Walls Reliable measurement within superheated steam headers, coal-fired boiler zones, and flue paths.
-
High-Temperature Carburizing and Nitriding Ovens Resisting advanced metal breakdown inside specialized carbon-rich industrial heat-treating atmospheres.
Datasheet
FAQs
1. What is a Simplex Flameproof Thermocouple?
A Simplex Flameproof Thermocouple is an industrial temperature sensor containing a single sensing element housed inside a flameproof terminal head. It is specifically designed to provide accurate and reliable temperature measurement in hazardous industrial environments where explosive gases, vapors, or combustible atmospheres may be present while ensuring safe operation.
2. Why is Inconel 600 used instead of stainless steel?
Inconel 600 is a nickel-chromium alloy that offers superior resistance to oxidation, scaling, thermal fatigue, and high-temperature corrosion compared to conventional stainless steel. Its exceptional heat resistance and mechanical strength make it the preferred sheath material for continuous high-temperature industrial applications where long service life and dependable performance are essential.
3. Where are Inconel Flameproof Thermocouples used?
Inconel Flameproof Thermocouples are widely used in industrial furnaces, kilns, gas turbines, boilers, petrochemical plants, chemical processing facilities, power generation systems, combustion equipment, heat treatment plants, steel industries, cement plants, and other hazardous industrial environments requiring reliable high-temperature measurement.
4. Why Choose Aavad Instrument Simplex Flameproof Thermocouple?
Aavad Instrument Pvt. Ltd. Simplex Flameproof Thermocouples are manufactured using premium-grade materials and precision engineering techniques to deliver exceptional accuracy, durability, and long operational life. Every thermocouple undergoes stringent quality testing to ensure reliable performance in harsh industrial environments. We offer customized insertion lengths, sheath materials, process connections, terminal head configurations, and thermocouple types to meet the specific requirements of diverse industrial applications.
