Description

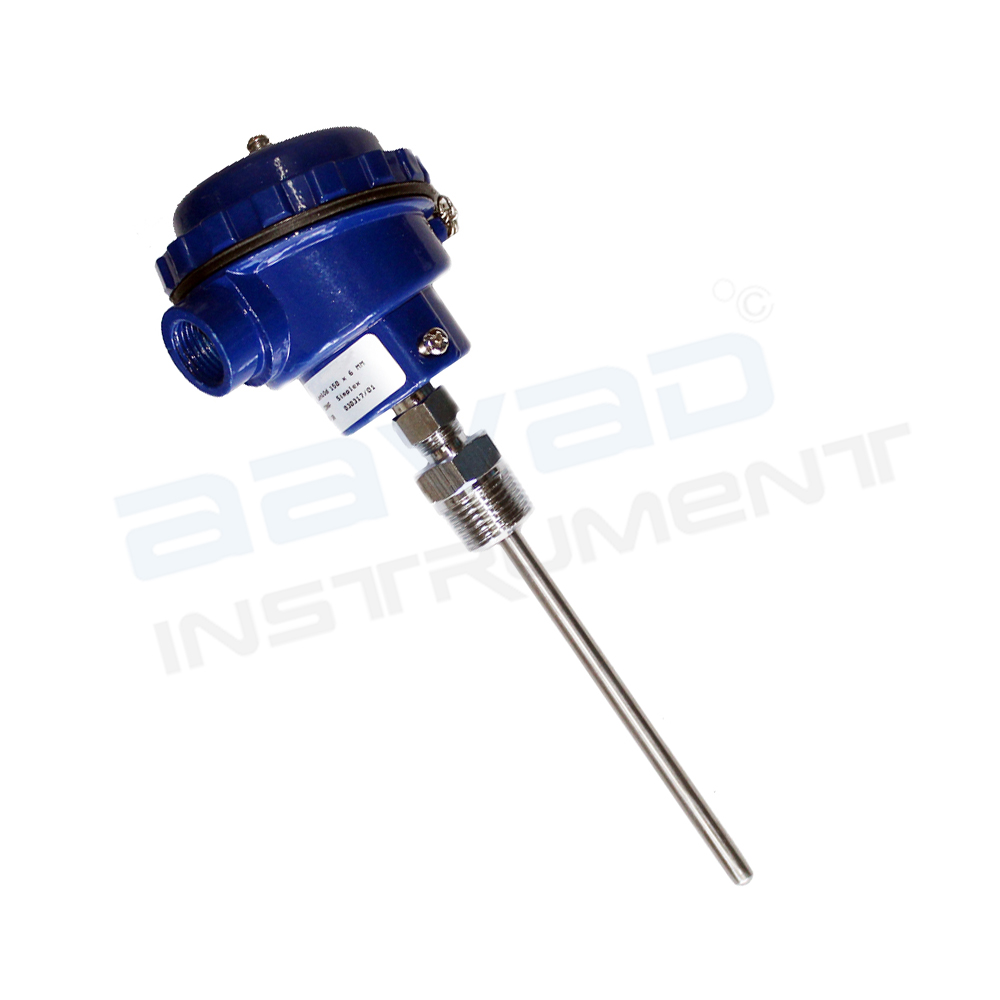

Spring Loaded Thermocouple is a simplex K-Type temperature sensor specifically engineered for installation inside thermowells, where maintaining continuous contact between the sensing tip and the thermowell bottom is essential for fast and accurate temperature measurement.
In conventional fixed thermocouples, thermal expansion, vibration, or slight dimensional variations inside the thermowell can create a small air gap between the sensing tip and the bottom of the thermowell. Even a minimal gap can slow heat transfer, increasing response time and causing measurement lag.
The AKWS-I6S addresses this challenge through a spring-loaded terminal block that continuously applies forward pressure to the sensing insert. As operating conditions change, the internal spring automatically compensates for thermal expansion and minor dimensional tolerances, ensuring the sensing tip remains firmly seated against the thermowell bottom. This improves thermal contact, enhances response speed, and supports more consistent temperature measurement.
The sensor incorporates a 6 mm Inconel 600 mineral insulated sheath, providing excellent resistance to oxidation, vibration, and thermal cycling for continuous operation from 0°C to 850°C. Its 850 mm insertion length makes it suitable for a wide range of thermowell assemblies used in industrial process equipment.
A rugged standard die-cast aluminium terminal head with IP65 protection safeguards electrical connections in demanding industrial environments, while the compact design allows straightforward installation and maintenance.
Need a complete thermowell assembly? → Thermowell product category.
Key Features
-
Positive Contact Spring Load Mechanism Maintains continuous forward pressure on the sensor tip to ensure direct metal-to-metal contact inside the thermowell.
-
Rapid Thermal Response Performance Eliminates air gap thermal insulation, drastically reducing thermal response lag during dynamic process shifts.
-
Premium Inconel 600 Protection Sheathing High-nickel alloy body delivers exceptional high-temperature oxidation and chemical resistance up to 850°C.
-
Vibration and Expansion Compensation Absorbs process piping vibration and accommodates thermal expansion differentials without losing tip contact.
-
Compact 850 mm Insertion Profile Optimally sized for standard industrial thermowell depths in pipelines, vessels, and heat exchangers.
-
Simplex 2-Wire Thermoelectric Core Delivers clean, linear millivolt loop signals directly to plant temperature controllers, transmitters, or PLCs.
-
Weatherproof IP65 Connection Enclosure Die-cast aluminum terminal head completely seals wiring terminals against dust, rain, and moisture ingress.
-
Traceable NABL Certification Available Supplied with formal calibration reports to fulfill ISO compliance and corporate quality audits.
Applications
-
Thermowell Assemblies in Chemical and Petrochemical Plants High-accuracy monitoring in pressurized liquid lines, distillation columns, and chemical reactors.
-
Refinery Pipelines and High-Velocity Process Paths Reliable temperature tracking inside heavy-flow fluid lines subjected to constant operational vibration.
-
Power Plant Steam Lines and Feedwater Loops Rapid thermal tracking inside high-pressure steam headers and auxiliary boiler lines.
-
Industrial Heat Exchangers and Condensers Continuous thermal performance monitoring across fluid inlet and outlet thermowell ports.
-
Automotive, Engine, and Machinery Test Benches High-vibration coolant, oil, and exhaust manifold temperature acquisition using thermowells.
Datasheet
FAQs
1. What is a Spring Loaded Thermocouple?
A Spring Loaded Thermocouple is an industrial temperature sensor specifically designed for installation inside thermowells. An internal spring mechanism applies continuous pressure to the sensing tip, ensuring firm contact with the bottom of the thermowell for improved heat transfer, faster response time, and more accurate temperature measurement.
2. Why is a spring mechanism important?
The internal spring automatically compensates for thermal expansion, vibration, and minor manufacturing tolerances within the thermowell. This eliminates air gaps between the sensing tip and the thermowell bottom, improving thermal conductivity, increasing measurement accuracy, and reducing sensor response time in demanding industrial environments.
3. Where are Spring Loaded Thermocouples used?
Spring Loaded Thermocouples are widely used in chemical plants, petrochemical facilities, power stations, boilers, pipelines, reactors, heat exchangers, pharmaceutical manufacturing, food processing plants, oil & gas industries, and industrial automation systems that utilize thermowell-mounted temperature sensors for continuous process monitoring.
4. Why Choose Aavad Instrument Spring Loaded Thermocouples?
Aavad Instrument Pvt. Ltd. Spring Loaded Thermocouples are precision-engineered using premium Inconel 600 mineral insulated construction, a reliable spring-loaded mechanism, and advanced manufacturing techniques to ensure exceptional accuracy, repeatability, and long operational life. Every thermocouple undergoes stringent quality testing to deliver dependable performance in demanding industrial applications. We also offer customized insertion lengths, process connections, terminal head configurations, sheath materials, and sensing options to meet specific industrial requirements.
