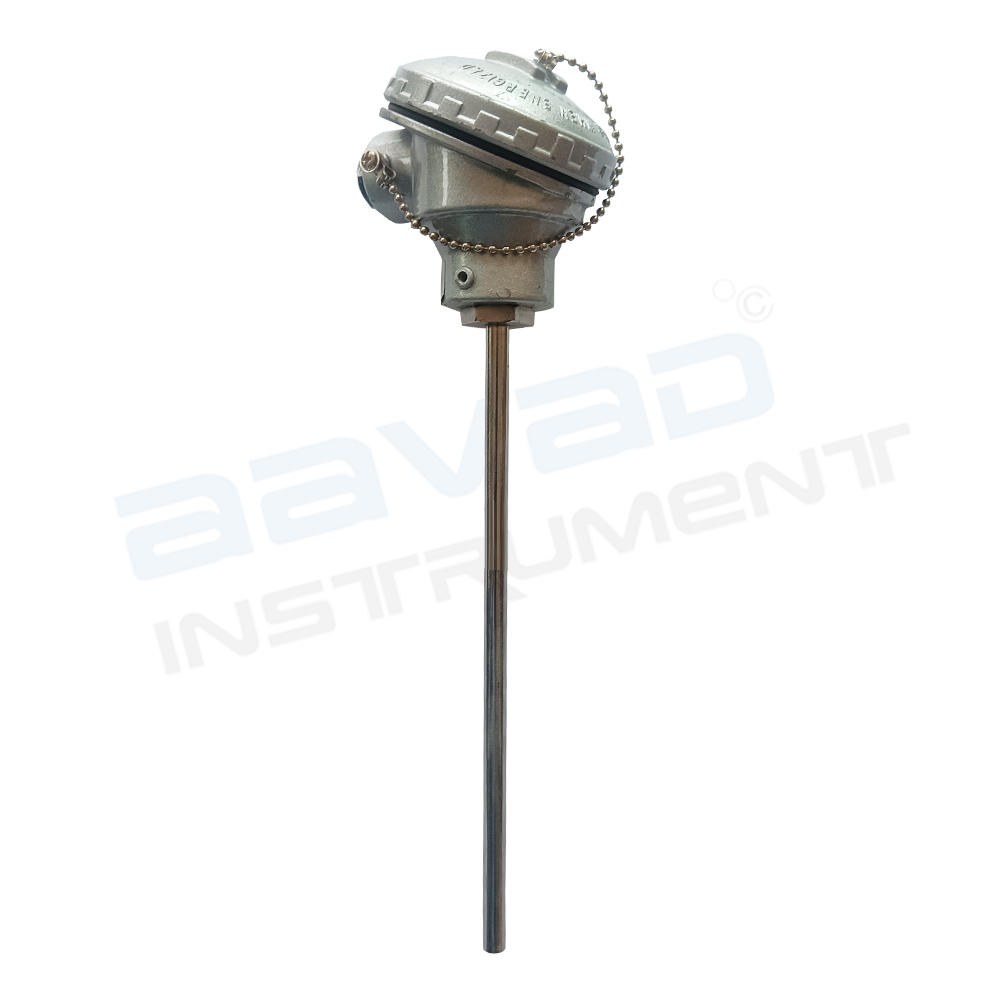

T-Type Thermocouple
T-Type Thermocouple
| Parameter | Specification |
|---|---|
| Type | T (Copper/Constantan) |
| Make | Aavad |
| Model | ATIS |
| Configuration | simplex |
| No. of wire | 2 |
| Temperature range | 0 to 350 degrees c |
| Material of construction | SS 316 |
| Insulation | compacted MgO insulation |
| Protection head | Die-cast aluminum head with threaded cap & chain |
| Head protection class | IP-67 |
| Head cable entry connection | 1/2″ NPT |
| No. of cable entry | Single |
| Terminal block | Nickel-plated ceramic terminal block |
| Od | 8 mm |
| Length | 850 mm |
Description
T-Type Thermocouple is a high-accuracy temperature sensor engineered for reliable measurement in low-temperature, sub-zero, and cryogenic applications. Manufactured using Copper (positive) and Constantan (negative) conductors, this thermocouple provides exceptional measurement stability, repeatability, and sensitivity across temperatures ranging from 0°C to +350°C, making it the preferred choice wherever conventional thermocouples struggle to deliver accurate readings.
Unlike many other base-metal thermocouples, the T-Type Thermocouple performs exceptionally well in moisture-rich and low-temperature environments. Its high thermoelectric sensitivity of approximately 43 µV/°C generates stronger output signals, resulting in improved measurement accuracy and reduced signal noise, especially during cryogenic temperature monitoring.
The Model ATIS features a durable SS316 stainless steel protection sheath with an 8 mm outer diameter and 850 mm insertion length, ensuring excellent resistance to corrosion, oxidation, and harsh industrial environments. A rugged IP67-rated die-cast aluminium terminal head protects electrical connections from dust and water ingress, making the sensor suitable for demanding industrial installations as well as laboratory environments.
