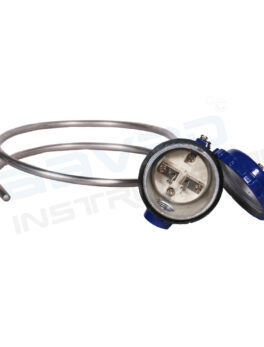

J-Type Thermocouple
J-Type Thermocouple
| Parameter | Specification |
|---|---|
| Type | J (ir/co) |
| Make | Aavad |
| Model | AJIS |
| Configuration | simplex |
| No. of wire | 2 |
| Temperature range | 0 to 600 degrees c |
| Material of construction | SS 316 |
| Insulation | compacted MgO insulation |
| Process connection | BSP |
| Process connection size | 1/2 ” (m) adjustable |
| Protection head | Die-cast aluminum head with threaded cap & chain |
| Head protection class | IP-67 |
| Head cable entry connection | 1/2″ NPT |
| No. of cable entry | Single |
| Terminal block | Nickel-plated ceramic terminal block |
| Od | 6 mm |
| Length | 650 mm |
Description
J-Type Thermocouple is a high-performance industrial temperature sensor designed for accurate and dependable temperature measurement in low to medium-temperature industrial processes. Constructed using Iron (positive) and Constantan (negative) conductors, this thermocouple provides excellent sensitivity, fast response time, and reliable performance across a temperature range of 0°C to 600°C.
J-Type Thermocouples are widely recognized for their superior performance in reducing and inert atmospheres, where the iron sensing element offers stable operation compared to chromium-based thermocouple types. With a high thermoelectric sensitivity of approximately 50–55 µV/°C, the J-Type generates one of the strongest signal outputs among common base-metal thermocouples, enabling precise temperature measurement and improved process control.
The Model AJIS features a corrosion-resistant SS316 stainless steel sheath, providing excellent mechanical strength and durability in demanding industrial environments. Its adjustable 1/2″ BSP process connection allows flexible installation and accurate insertion depth adjustment, making it suitable for a wide variety of industrial equipment and process vessels. The rugged IP67-rated die-cast aluminium terminal head protects internal electrical connections against dust, moisture, and harsh operating conditions.
